3 axis CNC Router-woodworking

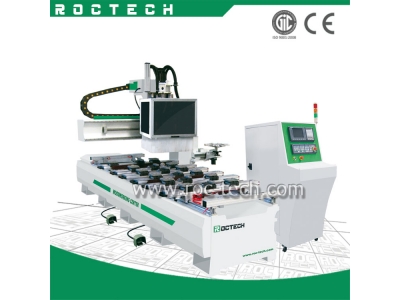

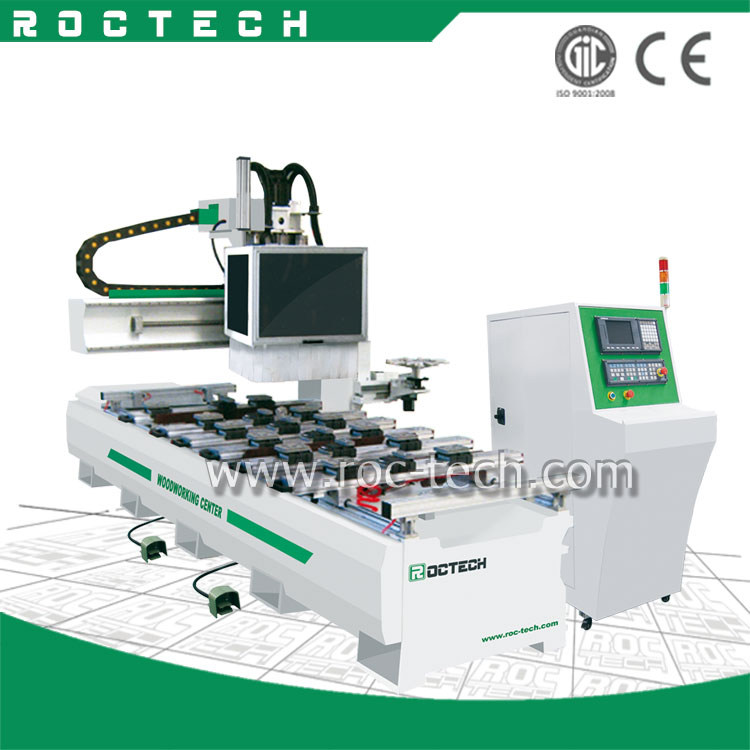

PTP WORK CENTER RC1224

No.:RC1224
Brand :ROCTECH
Weight:3100KG

PTP WORK CENTER RC1224,Detailed

Features:

1.This machine can meet different customer’s requirements, can realize Drilling, Slotting, Milling, Side Milling,

Cutting etc.

2.Taiwan Syntec control system, original Italian HSD ATC air cooling spindle, Japanese Yaskawa servo motor

and driver, Taiwan reducer, Germany Schmalz vacuum adsorption table.

3.This machine can realize double-location operation, save time improve work efficiency.

Performance Parameter:

NO.	Description	Parameter
1	X,Y,Z Traveling	12002400250mm
2	Table structure	Movable beam, Germany Schmalz vacuum adsorption
3	Frame	Welded structure
4	X,Y,Z Drive system	X,Y Helical rack and pinion, Z ball screw
5	Max Rapid	50000mm/min
6	Max Working Speed	20000mm/min
7	Spindle power	9.0KW
8	Spindle speed	0-24000RPM
9	Driving system	Yaskawa Servo Motors / Delta
10	Tool Magazine	Carousel tool magazine system
11	Working voltage	AC380V, 50/60HZ, 3PH
12	Command Language	G Code
13	Operating system	Syntec Control
14	Software	Became, Alpha came
15	Gross Weight	3100KG
16	Options	Vacuum Pump

Guarantee & After Sales Service

1. The machine is guaranteed for 12 months.

2. Technical support by phone, e-mail or MSN around the clock.

3. Friendly English version manual and operation video CD disk.

3 axis CNC router for woodworking are our selling models. These well-known companies are our suppliers, they are Siemens, HSD, Yaskawa, Delta. This engraving machine is mainly used in furniture and panel furniture industry. Considering to the customers' different requirements about the sizes, we can provide different models.
