Woodworking Machinery

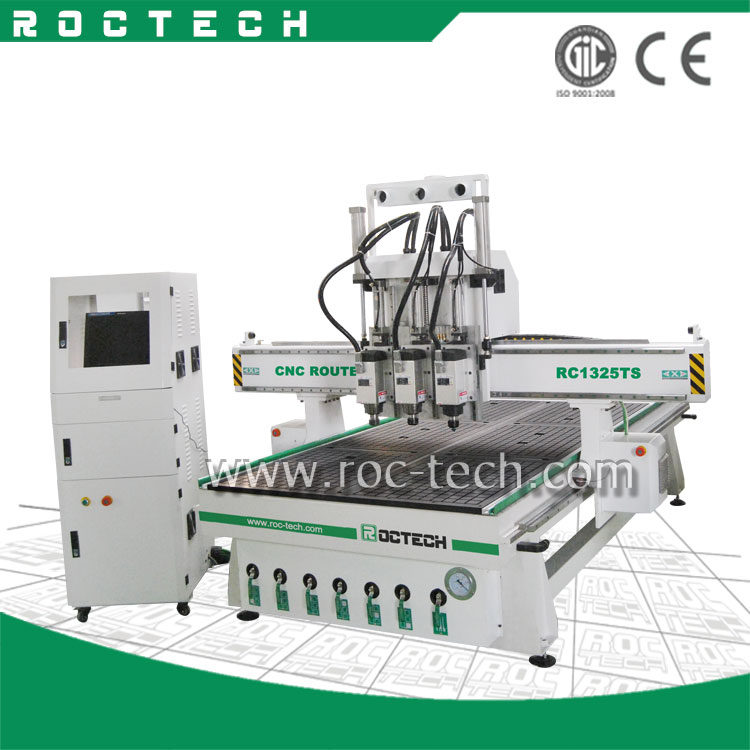

Woodworking Machinery 1300x2500x200mm

No.:10202473936
Brand :ROCTECH
Weight:2190KG

Woodworking Machinery 1300x2500x200mm,Detailed

Features:
With three auto-changing air coolant spindle, big inverter, this machine is specially designed for woodworking

industrial.

Top Quality Components:

1. Three 4.5Kw air cooling spindles(option: HSD spindle), which can be changed automatically with the commands

from system.

2. Special processed thick steel pipe structure, well welded, high-precision, no distortion for whole structure and

can be used for long life time.

3. SYNTEC controller system with Ethernet interface, working without connecting with computer during working and

easy to control (Ncstudio for option).

4. Software: CAD/CAM designing software such as Original type3, Artcam pro,

5. Auto lubrication system, easy to operate.

6. Separated control system makes it easy to operate.

7. Stepper motors and the option of Yaskawa or Panasonic Servo motors and drivers, and two motors for Y axis.

Performance Parameter:

NO.	Description	Parameter
1	X,Y,Z Working Area	1300x2500x200mm
2	Table Size	1340×3640mm
3	X,Y,Z Traveling Positioning Accuracy	±0.02/300mm
4	X,Y,Z Repositioning Accuracy	±0.02mm
5	Table Surface	Vacuum and T-slot Combined(Option: T-slot Table)
6	Frame	Welded Structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Max. Power Consumption	(Without Spindle) 4.5Kw
10	Max. Rapid Travel Rate	30000mm/min
11	Max. Working Speed	25000mm/min
12	Spindle Power	4.5kw *3
13	Spindle Speed	0-18000RPM
14	Drive Motors	Stepper System
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
16	Command Language	G code
17	Operating System	SYNTEC controller system (options: Ncstudio PC Software)
18	Computer Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER25
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3/UcancameV9 Software(Option: Artcam Software)
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	3750X2250X2100mm
26	N.W.	1850KG
27	G.W.	2190KG
28	Optional Parts	Air Cooling Spindle or Water Cooling Spindle
		Syntec Control System
		Vacuum Pump
		Rotary System
		Mist-cooling System
		850W Yaskawa/800W PanasonicServo Motors

Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
