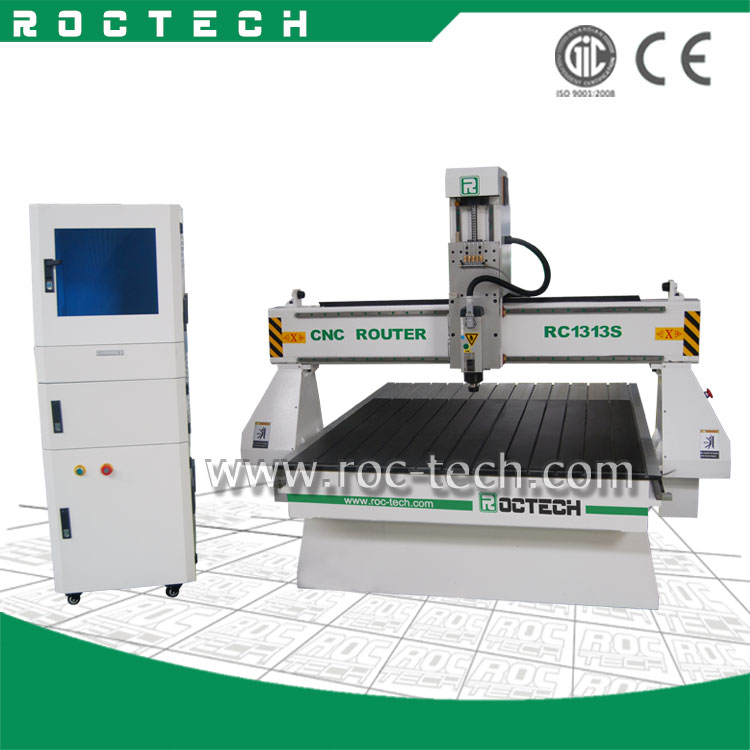

Roctech CNC Wood Router RC1313

With hard steel structure, CNC Wood Router RC1313 is fit for hard wood working, like cutting and engraving

on Rosewood for furniture, indoor decoration. And with the Vacuum holding way and dust collector, the machine

is qualified for mass- producing of furniture.
We use top quality components for the machines, like HSD spindle, Delta Inverter, Becker Vacuum pump,

 Hiwin linear and so on, to keep the machine in the best condition even after many years working.

We use the best quality parts for the CNC routers:

1. The machines’ body is strong, rigid, high precision, reliable and durable.

2. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision..

3. Using well-known domestic brands of water-cooled brushless spindle, low noise, and strong cutting ability,

    to ensure the long time working.

4. High-performance driven motor to ensure that the machines high speed and accuracy

5. Designer perfectly, select the best machine accessories, to minimize the failure rate preferred

6. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions

    to ensure that accidental processing

Detailed Product Description:

No.

Description

Parameter

1

X,Y,Z Working Area:

1300x1300x200mm

2

Table Size:

1360×1740mm

3

X,Y,Z Traveling Positioning Accuracy:

±0.01/300mm

4

X,Y,Z repositioning Accuracy:

±0.01mm

5

Table Surface:

Vacuum and  T-slot combined (Option: T-slot table)

6

Frame:

 Steel tube structure

7

X, Y Structure:

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

Z Structure:

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption:

(Without spindle)  2.0Kw

10

Max. Rapid Travel Rate:

33000mm/min

11

Max. Working Speed:

25000mm/min

12

Spindle Power:

3.0/4.5/6/7KW

13

Spindle Speed:

0-18000RPM

14

Drive Motors:

Stepper system

15

Working Voltage:

 AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language:

G code

17

Operating System:

DSP System (options: Ncstudio/Mach3 PC Software)

18

Computer Interface:

USB

19

Flash Memory:

128M(U Disk)

20

Collet:

ER25

21

X,Y Resolution

 <0.01mm

22

Software Compatibility:

Type3/UcancameV9 software, (Option: Artcam software)

23

Running Environment  Temperature:

0 degree - 45 degree

24

Relative Humidity:

30% - 75%

25

Packing Size:

1900X1900X1970mm

26

N.W.:

1060KG

27

G.W.:

1250KG

28

Guarantee

One year from the date of commission













29













Optional Parts

Air cooling spindle or Water cooling spindle

Syntech control system

Dust collector/ Dust hoods for three axis

Vacuum Pump

Rotary system

Mist-cooling system

850W Yaskawa/800W Panasonic Servo motors

Guarantee & After Sales Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by phone, email or msn.
3) Friendly English version manual and operation video CD disc.
