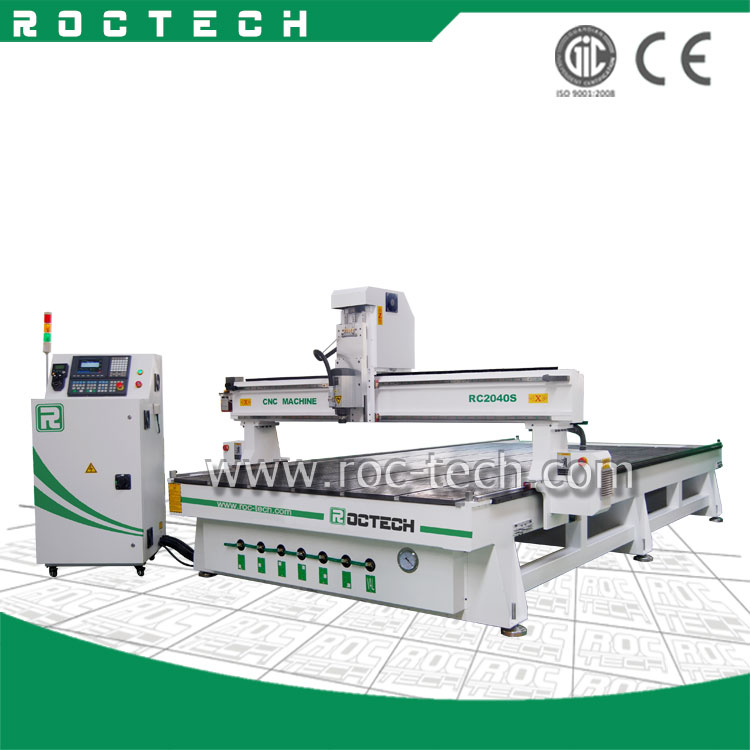

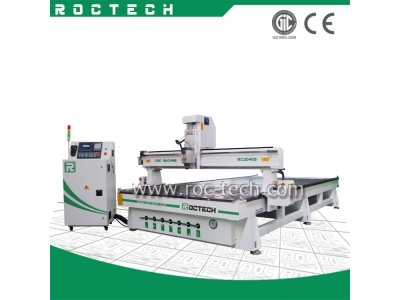

Woodworking Machinery RC 2040S

No.

Description

Parameter

1

X,Y,Z Working Area:

2000x4000x200mm

2

Table Size:

2100×4400mm

3

X,Y,Z Traveling Positioning Accuracy:

±0.01/300mm

4

X,Y,Z repositioning Accuracy:

±0.01mm

5

Table Surface:

Vacuum and  T-slot combined (Option: T-slot table)

6

Frame:

 Welded structure

7

X, Y Structure:

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

Z Structure:

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption:

(Without spindle)  4.5Kw

10

Max. Rapid Travel Rate:

40000mm/min

11

Max. Working Speed:

25000mm/min

12

Spindle Power:

3.0/4.5/6/7KW

13

Spindle Speed:

0-18000RPM

14

Drive Motors:

Yaskawa servo system

15

Working Voltage:

 AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language:

G code

17

Operating System:

Syntech control System(options: DSP/Ncstudio/Mach3 PC Software)

18

Computer Interface:

Ethernet

19

Flash Memory:

256M(with CF card)

20

Collet:

ER25

21

X,Y Resolution

 <0.01mm

22

Software Compatibility:

Type3/UcancameV9 software, (Option: Artcam software)

23

Running Temperature:

0 - 45 degree

24

Relative Humidity:

30% - 75%

25

Packing Size:

2300X4800X1900mm

26

N.W.:

 2750KG

27

G.W.:

3100KG

28

Guarantee

One year from the date of commission

29

Optional Parts

Air cooling spindle or Water cooling spindle

Dust collector

Rotary system

Mist-cooling system

Panasonic Servo motors/Delta servo motors
