Used CNC Router Machine

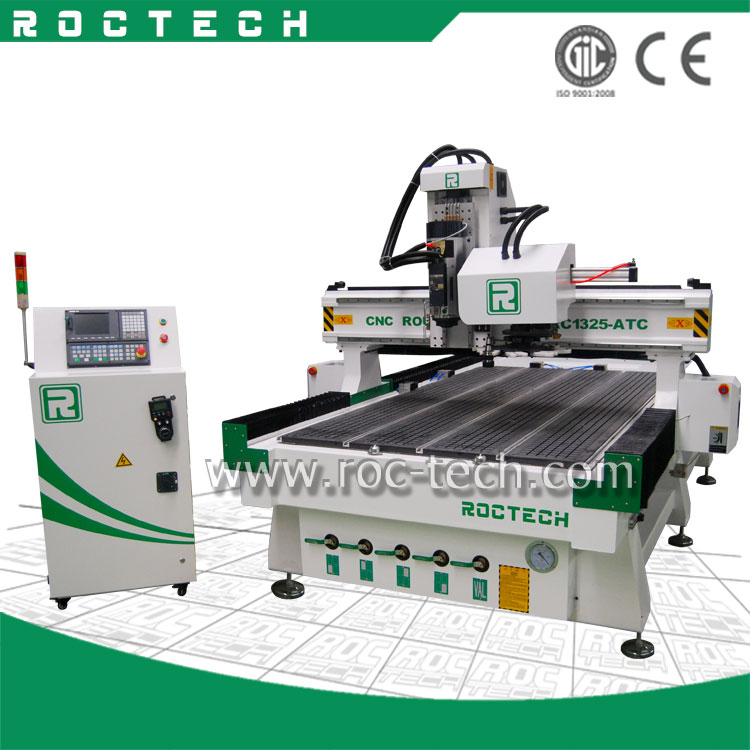

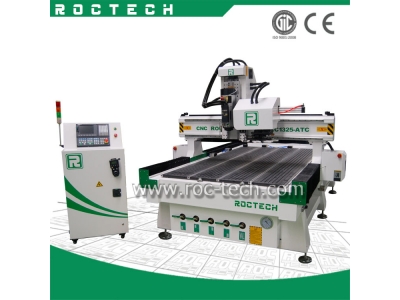

Woodworking Machining center RC1325S-ATC

No.:10202473942
Brand :ROCTECH
Weight:2000KG

Woodworking Machining center RC1325S-ATC,Detailed

Brief introduction
1. With hard steel structure,the machine is fit for hard wood working,like cutting and engraving on Rosewood for furniture

indoor decoration, and it is qualified for mass- producing of furniture with the Vacuum holding way and dust collector.

2. We use top quality components for the machine, such as HSD spindle, , Delta Inverter, Becker Vacuum pump, SKF

linear and so on, to keep the machine in the best condition even after working for many years.

Top Quality Components
1). The machine’s body is strong, high-precision, reliable and durable.
2). Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3). Well-known HSD ATC spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4). High-performance Yaskawa servo motor to ensure the machine’s high speed and accuracy.
5.). Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions

in case of the accidental power outages
6). Perfect design, top quality accessories, to minimize the machine’s failure rate.

Performance parameter

NO.	Description	Parameter
1	X,Y,Z Working Area	1300x2500x200mm
2	Table Size	1350×2550mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Accuracy	±0.03mm
5	Table Surface	Vacuum and T-slot Combined(Option: T-slot table)
6	Frame	Welded structure
7	X, Y Structure	Rack and Pinion Drive, Taiwan Hiwin Linear Bearings
8	Z Structure	Taiwan Hiwin Linear Bearings and Ball Screw
9	Max. Power Consumption	(Without Spindle) 4.5kw
10	Max. Rapid Travel Rate	45000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	9kw
13	Spindle Speed	0-24000RPM
14	Drive Motors	Yaskawa servo
15	Working Voltage	AC 380V/50/60Hz,3PH
16	Command Language	G Code
17	Operating System	Syntec Control System
18	Computer Interface	Ethernet
19	Flash Memory	256M with CF card
20	Collet	ER32
21	X,Y Resolution	<0.03mm
22	Software Compatibility	Type3 software , Artcam software
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	384022102200 mm
26	N.W.	1800KG
27	G.W.	2000KG
28	options	Dust Collector
		Rotary System
		Mist-cooling System

Guarantee & After Sales Service
1). The machine is guaranteed for 12 months.
2). Technical support by phone, email or MSN around the clock.
3). Friendly English version manual and operation video CD disk.
