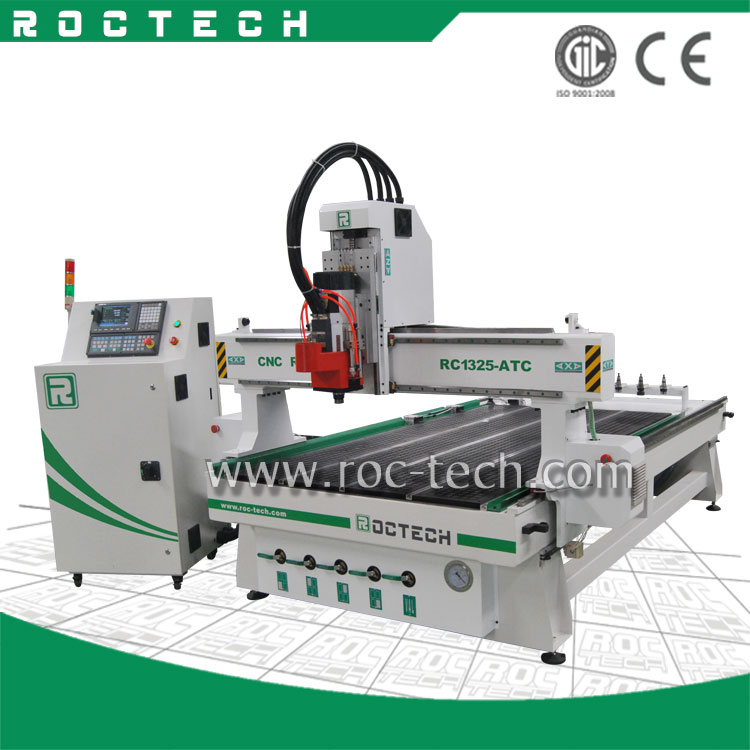

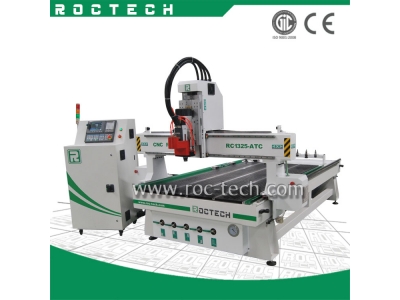

CNC Router RC 1325-ATC This machine works with Auto-tool changing 8 tools auto-changing on linear.
All components are the best quality:
1.9.0KW HSD ATC spindle, Change tools automatically. With Carrousel tool magazine
2.Thick steel pipe stucture afer special treatment,well welded, no distortion for whole structure high precision ,and
long life time.
3. SYNTEC controller system with Ethernet interface,working without connecting with computer during working and
easy to control.
4.Software:CAD/CAM designing software such as Original type3, Artcam,
5.Auto lubrication system ,easy to operate by pressing one key.
6.Separated control system makes operation easily.
7.Adopt high speed YASKAWA SERVO motor and drivers,and two motors for Y axis. Max speed is 60000mm/min.
Performance parameter:
NO. |
Description |
parameter |
|
1 |
XYZ working area |
1300*2500*200mm |
|
2 |
Table size |
1330*3640mm |
|
3 |
XYZ travel positioning accuracy |
±0.02mm |
|
4 |
XYZ repositioning positioning accury |
±0.02mm |
|
5 |
Table surface |
Vacuum and Tslot combined |
|
6 |
Frame |
Steel tube structure |
|
7 |
Drive system X-Y axis |
Rack and pinion |
|
8 |
Drive system Z axis |
Ball screw |
|
9 |
Max power consumption |
4.5KW(without spindle) |
|
10 |
Max velocity |
40000mm/min |
|
11 |
Max working speed |
25000mm/min |
|
12 |
Spindle speed |
0-24000rmp |
|
13 |
work mode |
Servo Yaskawa |
|
14 |
Working voltage |
AC380V |
|
15 |
Command language |
G code |
|
16 |
Interface |
USB |
|
17 |
Operating system |
Syntec control system |
|
18 |
Flash memory |
256M |
|
19 |
X-Y resolution |
0.02mm |
|
20 |
Software |
Type3 |
|
21 |
Running |
Temperature:0 degree-45 degree |
|
22 |
Paking size |
3750*2250*2100mm |
|
23 |
Net weight |
1550KG |
|
24 |
Gross weight |
1790KG |
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
