Used CNC Router Machine

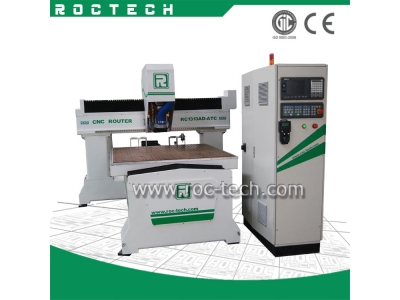

Acrylic Mini Letter Cutting CNC Machine RC1313AD-ATC

No.:10202473930
Brand :ROCTECH
Weight:3000KG

Acrylic Mini Letter Cutting CNC Machine RC1313AD-ATC,Detailed

1. Brief introduction
1）The machine is the best choice for small piece materials working in advertising industry. It is good at cutting and

engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials.

2）We use top quality components for the machine, such as Hiteco spindle, Yaskawa servo motor, Delta Inverter,

Hiwin linear and so on, to keep the machine in best condition even after working for many years.

3）With phenolic T-slot and vacuum combined table, not easy to deflect, you can do variety of high-precision works.

2. Performance parameter

No.	Description	Parameter
1	X,Y,Z Working Area	1300X1300X200mm
2	Table Size	1400X1400mm
3	X,Y,Z Traveling Positioning Accuracy	0.03/300mm
4	X,Y,Z Repositioning Positioning Accuracy	0.03mm
5	Table Surface	T-slot table & Vacuum Combined
6	Frame	Welded Steel Structure
7	X, Y ,Z Structure	Hiwin Rail Linear and Ball Screw
8	Max. power Consumption	(Without Spindle) 4.2Kw
9	Max. Rapid Travel Rate	33000mm/min
10	Max. Working Speed	25000mm/min
11	Spindle Power	9kw Hiteco air cooling spindle
12	Spindle Speed	0-24000RPM
13	Drive Motors	Yaskawa Servo Motors
14	Working Voltage	AC380V/50/60Hz
15	Command Language	G Code
16	Operating System	Syntec System
17	Collet	ER32
18	X,Y Resolution	<0.03mm
19	Software compatibility	Type3, Artcam, Ucancam
20	Packing Size	2100 x 2100 x 2000mm
21	Net Weight	2800KG
22	Gross Weight	3000KG
23	Running Environment Temperature	0 – 45 Centigrade
24	Relative Humidity	30%~75%

3. Guarantee & After Sales Service

1). The machine is guaranteed for 12 months.
2). Technical support by phone, e-mail or MSN around the clock.
3). Friendly English version manual and operation video CD disk.
