China 3 AXIS CNC ROUTER WOODWORKING RC1325-ATC Manufacturers ,3 AXIS CNC ROUTER WOODWORKING RC1325-ATC Suppliers Directory - Find a 3 AXIS CNC ROUTER WOODWORKING RC1325-ATC Manufacturer and Supplier. Choose Quality 3 AXIS CNC ROUTER WOODWORKING RC1325-ATC Manufacturers, Suppliers, Exporters at ROCTECH CNC router.

3 axis CNC Router-woodworking

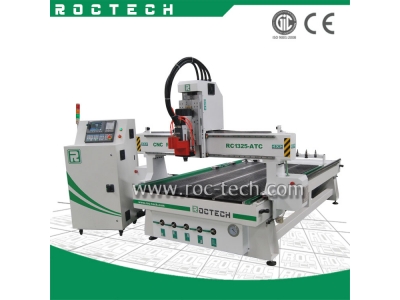

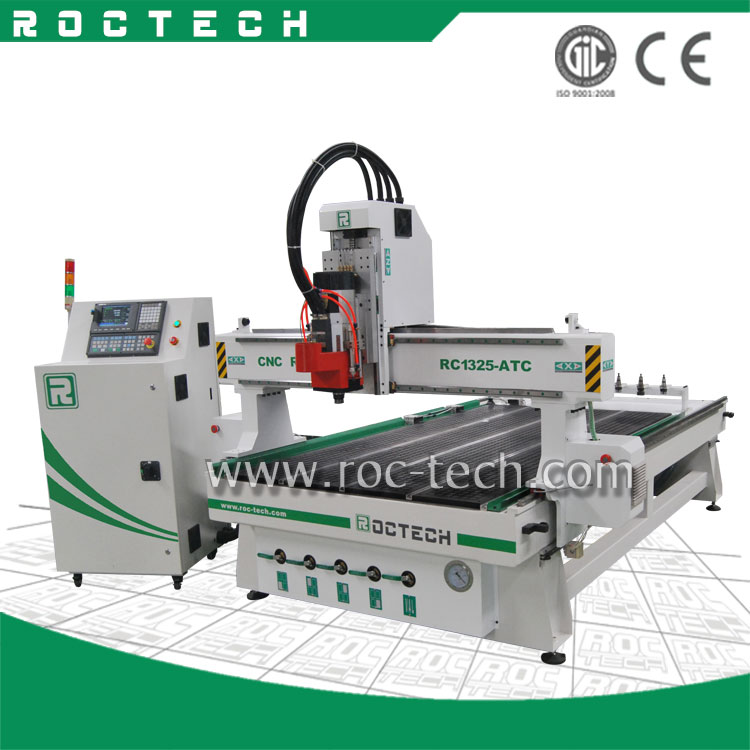

3 AXIS CNC ROUTER WOODWORKING RC1325-ATC

3 AXIS CNC ROUTER WOODWORKING RC1325-ATC
  • No.:10002473914
  • Brand :ROCTECH
  • Weight:2400KG

3 AXIS CNC ROUTER WOODWORKING RC1325-ATC ,Detailed

This machine works with Auto-tool changing 8 tools auto-changing on linear.

 Features:

1.With Syntec Controller Taiwan Hiwin Linear Rails, Yaskawa Servo Motor and Driver Italian Spindle.

2.With auto positioning rods, can locate the materials automatic, save much time and improve the work efficiency.

3.Intelligent processing cross-border protection function can prevent the excessive processing caused by

 mechanical collision.

4.Furniture: doors, cabinets, tables, and chairs.

5.Considering to the customer’s different requirements about the sizes, we can provide:RC1530-ATC,RC2030-ATC,

RC2040-ATC,RC2550-ATC etc.

Performance parameter:

NO.

Description

parameter

1

XYZ working area

1300*2500*200mm

2

Table size

1330*3640mm

3

XYZ travel positioning accuracy

±0.02mm

4

XYZ repositioning positioning accury

±0.02mm

5

Table surface

Vacuum and T-slot combined

6

Frame

Steel tube structure

7

Drive system X-Y axis

Rack and pinion

8

Drive system Z axis

Ball screw

9

Max power consumption

4.5KW(without spindle)

10

Max velocity

40000mm/min

11

Max working speed

25000mm/min

12

Spindle speed

0-24000rmp

13

Driving system

Yaskawa servo matoe

14

Working voltage

AC 380V

15

Command language

G code

16

Interface

USB

17

Operating system

Syntec control system

18

Flash memory

256M

19

X-Y resolution

0.02mm

20

Software

Type3,UG,Power Mill,Artcame

21

Running Temperature

0 -45 degree

22

Parking size

3750*2250*2100mm

23

Net weight

2200KG

24

Gross weight

2400KG

Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.





3 axis CNC router for woodworking are our selling models. These well-known companies are our suppliers, they are Siemens, HSD, Yaskawa, Delta. This engraving machine is mainly used in furniture and panel furniture industry. Considering to the customers'  different requirements about the sizes, we can provide different models.
