3 axis CNC Router-woodworking

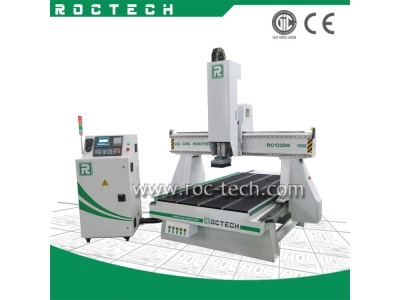

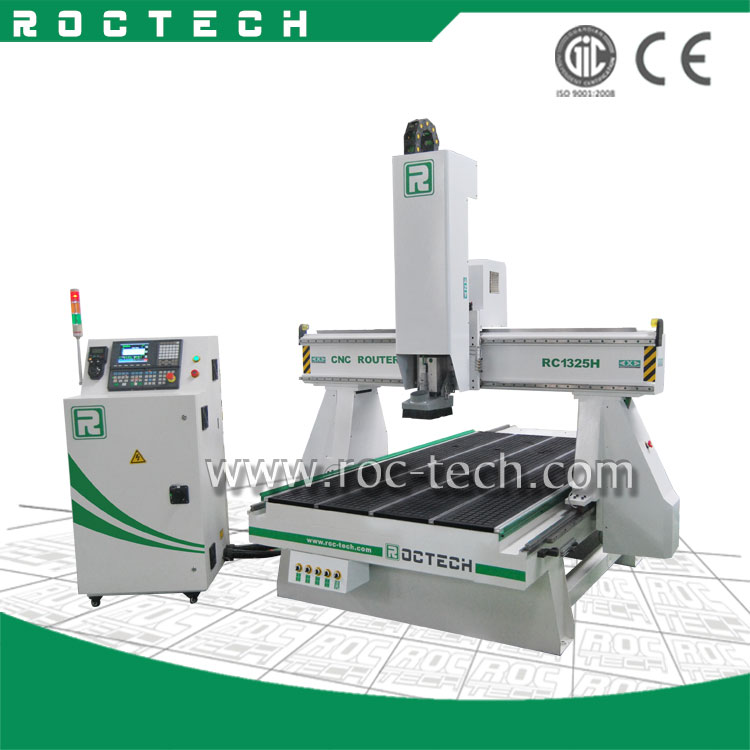

3 AXIS CNC ROUTER WOODWORKING RC1325H

3 AXIS CNC ROUTER WOODWORKING RC1325H
  • No.:10202473911
  • Brand :ROCTECH
  • Weight:2190KG

3 AXIS CNC ROUTER WOODWORKING RC1325H,Detailed

CNC Router RC 1325H is a machine ordered specially, which with 500mm (height) working size, it is fit for wood working,

Big size and mass producing, like cutting and engraving on Rosewood forfurniture,indoor decoration. And with the

Vacuum holding way and dust collector, the machine is qualified for mass-producing of furniture.

Optional functions:

HSD spindles, air cooling from 4.5kw to 6 kw, Delta inverter, Yaskawa servo system.Syntec control system,

Performance parameter:

NO.

Description

parameter

1

XYZ working area

1300*2500*500mm

2

Table size

1360*2900mm

3

XYZ travel positioning accuracy

±0.02/300mm

4

XYZ repositioning positioning accuracy

±0.02/300mm

5

Table surface

Vacuum and T-slot combined

6

Frame

Steel tube structure

7

Drive system X-Y axis

Rack and pinion

8

Drive system Z axis

Ball screw

9

Max power consumption

4.5KW(without spindle)

10

Max velocity

33000mm/min

11

Max working speed

25000mm/min

12

Spindle speed

0-18000rmp

13

work mode

Stepper

14

Working voltage

AC380V (220V)

15

Command language

G code

16

Interface

USB

17

Operating system

DSP control system

18

Flash memory

128M

19

X-Y resolution

0.02/300mm

20

Software

Type3, UcancamV9,UG,Artcame

21

Running Temperature

0-45 degree

22

Packing size

3200*2300*2500mm

23

Net weight

1950KG

24

Gross weight

2190KG

 Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.











3 axis CNC router for woodworking are our selling models. These well-known companies are our suppliers, they are Siemens, HSD, Yaskawa, Delta. This engraving machine is mainly used in furniture and panel furniture industry. Considering to the customers'  different requirements about the sizes, we can provide different models.
