3 axis CNC Router-woodworking

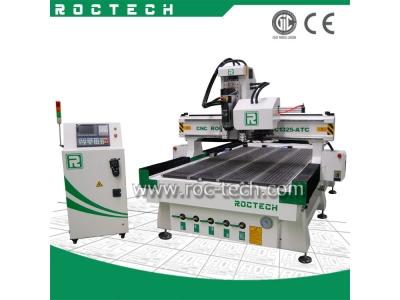

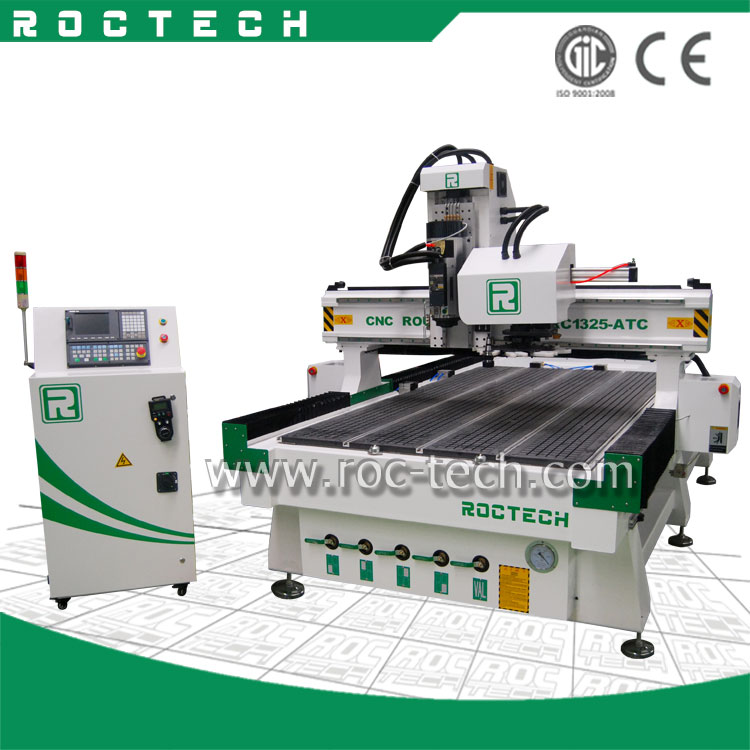

3 AXIS CNC ROUTER WOODWORKING RC1325S-ATC

3 AXIS CNC ROUTER WOODWORKING RC1325S-ATC
  • No.:10002439159
  • Brand :ROCTECH
  • Weight:1790KG

3 AXIS CNC ROUTER WOODWORKING RC1325S-ATC,Detailed

CNC Router RC 1325S-ATC

This machine is specially designed for woodworking industrial, with 8 tools auto-changing.

All components are the best quality:

1.9.0KW  HSD ATC spindle, Change tools automatically. With Carrousel tool magazine

2.Thick steel pipe structure after special treatment,well welded, no distortion for whole structure high precision ,and

long life time.

3. SYNTEC controller system with Ethernet interface,working without connecting with computer during working and

easy to control.

4.Software:CAD/CAM designing software such as Original type3, Artcam,

5.Auto lubrication system ,easy to operate by pressing one key.

6.Separated control system makes operation easily.

7.Adopt high speed YASKAWA SERVO motor and drivers,and two motors for Y axis. Max speed is 60000mm/min.

Performance parameter:

NO.

Description

parameter

1

XYZ working area

1300*2500*250mm

2

Table size

1330*3640mm

3

XYZ travel positioning accuracy

±0.02mm

4

XYZ repositioning positioning accuracy

±0.02mm

5

Table surface

Vacuum and T-slot combined table

6

Frame

Steel tube structure

7

Drive system X-Y axis

Rack and pinion

8

Drive system Z axis

Ball screw

9

Max power consumption

4.5KW(without spindle)

10

Max Rapid

35000mm/min

11

Max working speed

25000mm/min

12

Spindle speed

0-24000rmp

13

Driving system

Yaskawa Servo( Option:Siemens servo motor)

14

Working voltage

AC380V 3PH (Option:220V)

15

Command language

G code

16

Interface

USB

17

Operating system

Syntec control system (Option:Siemens)

18

Flash memory

256M

19

X-Y resolution

0.02mm

20

Software

Type3,UG,power mill,Artcame

21

Running Temperature

0-45 degree

22

Net weight

2250KG

23

Gross weight

2450KG

 Guarantee & After Sales Service

1. The machine is guaranteed for 12 months.

2. Technical support by phone, e-mail or MSN around the clock.

3. Friendly English version manual and operation video CD disk.



3 axis CNC router for woodworking are our selling models. These well-known companies are our suppliers, they are Siemens, HSD, Yaskawa, Delta. This engraving machine is mainly used in furniture and panel furniture industry. Considering to the customers'  different requirements about the sizes, we can provide different models.
