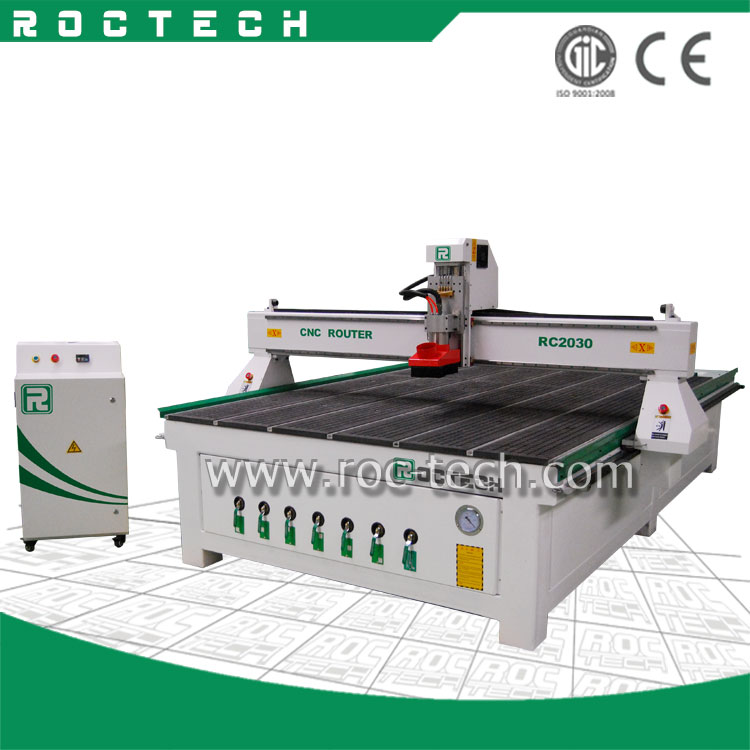

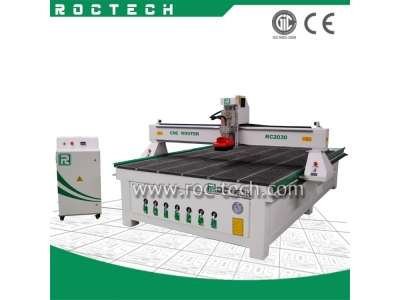

1. Brief Introduction
1) With hard steel structure, the machine is fit for hard wood working, like cutting and engraving on Rosewood for furniture,
indoor decoration, and it is qualified for mass- producing of furniture with the Vacuum holding way and dust collector.
2) We use top quality components for the machine, such as HSD spindle, Delta Inverter, Hiwin linear and so on, to keep the
machine in the best condition even after working for many years.
2. Top Quality Components
1) With 8mm thick steel tube, the machine’s body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw ensures the machine’s high precision and smooth movement.
3) Well-known HSD spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the machine’s high speed and accuracy.
5) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions
in case of the accidental power outages
6) Auto lubrication system and separated control system, easy to operate.
7) Perfect design, top quality accessories, to minimize the machine’s failure rate.
3. Performance Parameter
No. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
2000x3000x300mm |
2 |
Table Size |
2230×3440mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
5 |
Table Surface |
T-slot and Vacuum combined table (Option: T-slot combined) |
6 |
Frame |
Welded Structure |
7 |
X, Y Structure |
Helical Rack and Pinion Drive,
Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without Spindle) 3.5Kw |
10 |
Max. Rapid Travel Rate |
33000mm/min |
11 |
Max. Working Speed |
25000mm/min |
12 |
Spindle Power |
3.0/4.5/6/7KW |
13 |
Spindle Speed |
0-18000RPM |
14 |
Drive Motors |
Stepper system |
15 |
Working Voltage |
AC380V/50/60Hz,3PH
(Option: 220V) |
16 |
Command Language |
G Code |
17 |
Operating System |
Syntec Control System (options: Ncstudio/Mach3 PC Software) |
18 |
Computer Interface |
USB |
19 |
Flash Memory |
128M(U Disk) |
20 |
Collet |
ER32 |
21 |
X,Y Resolution |
<0.03mm |
22 |
Software Compatibility |
Type3/Artcam Software |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3700X2250X1970mm |
26 |
N.W. |
1560KG |
27 |
G.W. |
1750KG |
28 |
Optional Parts |
Air Cooling Spindle or Water Cooling Spindle |
Syntec Control System |
||
Dust Collector |
||
Vacuum Pump |
||
Rotary System |
||
Mist-cooling System |
||
850W Yaskawa/800W Panasonic Servo motors |
4. Guarantee & After Sales Service
1). The machine is guaranteed for 12 months.
2). Technical support by phone, e-mail or MSN around the clock.
3). Friendly English version manual and operation video CD disk.
