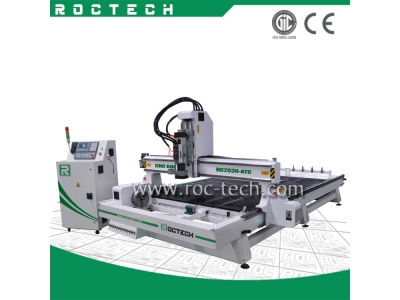

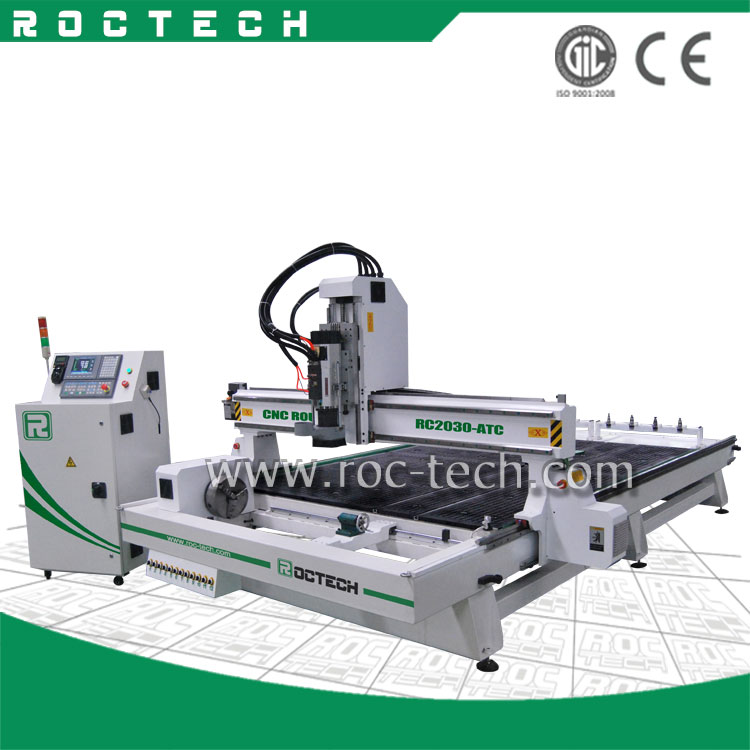

1. Brief introduction
With hard steel structure, the machine is fit for hard wood working, like cutting and engraving on Rosewood for furniture,
indoor decoration, and it is qualified for mass- producing of furniture with the Vacuum holding way and dust collector.
We use top quality components for the machine, such as HSD spindle, , Delta Inverter, Becker Vacuum pump, SKF linear
and so on, to keep the machine in the best condition even after working for many years.
2. Top Quality Components
1). The machine’s body is strong, high-precision, reliable and durable.
2). Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3). Well-known HSD ATC spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4). High-performance Yaskawa servo motor to ensure the machine’s high speed and accuracy.
5.). Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions
in case of the accidental power outages
6). Perfect design, top quality accessories, to minimize the machine’s failure rate.
3. Performance parameter
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
2000x3000x300mm |
2 |
Table Size |
2240×3040mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
5 |
Table Surface |
Vacuum and T-slot Combined (Option: T-slot table) |
6 |
Frame |
Welded structure |
7 |
X, Y Structure |
Rack and Pinion Drive, SKF Rail Linear Bearings |
8 |
Z Structure |
SKF Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without Spindle) 4.5kw |
10 |
Max. Rapid Travel Rate |
45000mm/min |
11 |
Max. Working Speed |
30000mm/min |
12 |
Spindle Power |
9kw |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
Yaskawa servo |
15 |
Working Voltage |
AC 220V/50/60Hz,3PH |
16 |
Command Language |
G Code |
17 |
Operating System |
Syntec Control System |
18 |
Computer Interface |
Ethernet |
19 |
Flash Memory |
256M with CF card |
20 |
Collet |
ER32 |
21 |
X,Y Resolution |
<0.03mm |
22 |
Software Compatibility |
Type3 software , Artcam software |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3700X2250X1970mm |
26 |
N.W. |
2000KG |
27 |
G.W. |
2300KG |
28 |
options |
Dust Collector |
Rotary System |
||
Mist-cooling System |
4. Guarantee & After Sales Service
1). The machine is guaranteed for 12 months.
2). Technical support by phone, email or MSN around the clock.
3). Friendly English version manual and operation video CD disk.
