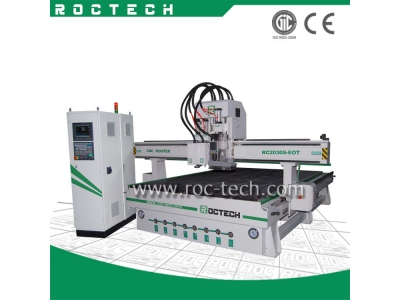

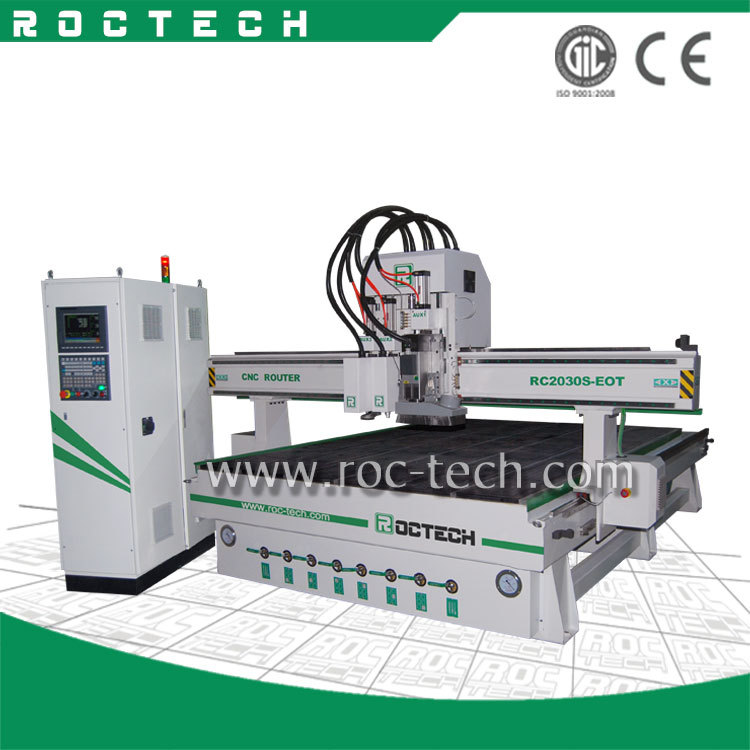

Features:
1. It is a multi-functional CNC router with additional functions like cutting and processing ductile materials like
corrugated paper, rubber and polyurethane foam panel.
2. Italy original high speed spindle and Germany original EOT-2 and TCT-1 are equipped on the machine which
makes it work with higher speed and accuracy.
3. Special laser cross positioning device on the machine improves the speed and accuracy of the machine working.
4. Custom machines are available upon request.
Performance Parameter:
No |
Description |
Parameter |
1 |
X,Y,Z Working Area |
2000x3000x300mm |
2 |
Table Size |
2100X3500mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
0.03/300mm |
4 |
X,Y,Z Repositioning Positioning Accuracy |
0.03mm |
5 |
Table Surface |
T-slot table & Vacuum Combined |
6 |
Frame |
Welded Steel Structure |
7 |
X, Y ,Z Structure |
Hiwin Rail Linear and Ball Screw |
8 |
Max. power Consumption |
(Without Spindle) 4.2Kw |
9 |
Max. Rapid Travel Rate |
33000mm/min |
10 |
Max. Working Speed |
25000mm/min |
11 |
Spindle Power |
9kw HSD air cooling spindle |
12 |
Spindle Speed |
0-24000RPM |
13 |
Drive Motors |
Yaskawa Servo Motors |
14 |
Working Voltage |
AC380V/50/60Hz |
15 |
Command Language |
G Code |
16 |
Operating System |
Syntec System |
17 |
Collet |
ER32 |
18 |
X,Y Resolution |
<0.03mm |
19 |
Software Compatibility |
Type3, Artcam, Ucancam |
20 |
Packing Size |
2200 x 3600 x 1500mm |
21 |
Net Weight |
2200KG |
22 |
Gross Weight |
2400KG |
23 |
Running Environment Temperature |
0 – 45 Centigrade |
24 |
Relative Humidity |
30%~75% |
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
