China 3 AXIS CNC ROUTER WOODWORKING RC1325R-ATC Manufacturers ,3 AXIS CNC ROUTER WOODWORKING RC1325R-ATC Suppliers Directory - Find a 3 AXIS CNC ROUTER WOODWORKING RC1325R-ATC Manufacturer and Supplier. Choose Quality 3 AXIS CNC ROUTER WOODWORKING RC1325R-ATC Manufacturers, Suppliers, Exporters at ROCTECH CNC router.

3 axis CNC Router-woodworking

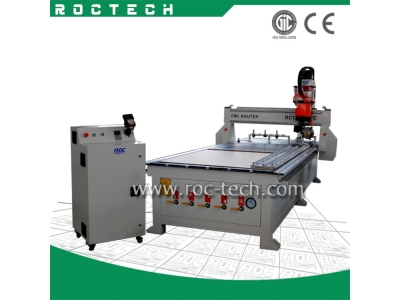

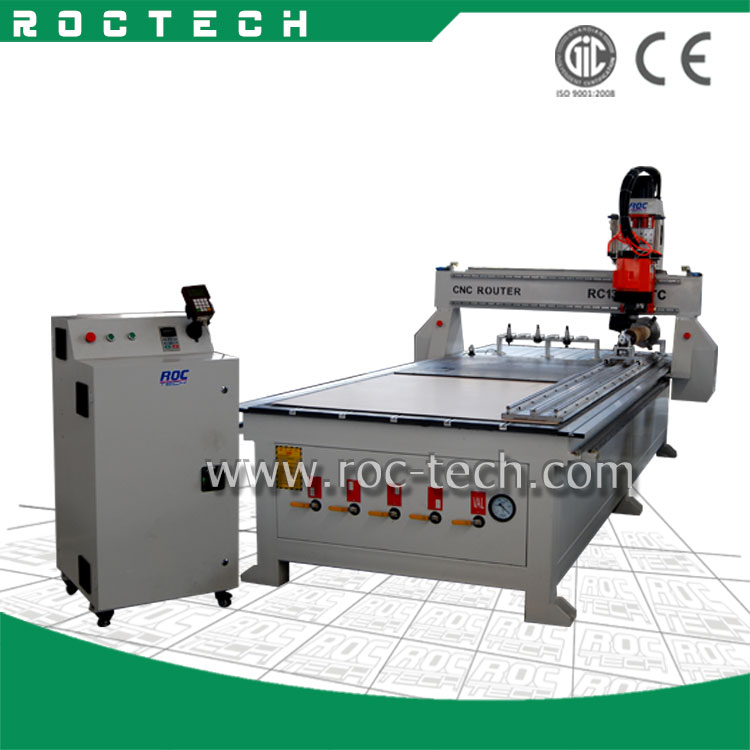

3 AXIS CNC ROUTER WOODWORKING RC1325R-ATC

3 AXIS CNC ROUTER WOODWORKING RC1325R-ATC
  • No.:10202473914
  • Brand :ROCTECH
  • Weight:1790KG

3 AXIS CNC ROUTER WOODWORKING RC1325R-ATC,Detailed

Features:

1.4.5kw Chinese water cooling spindle ATC, Change tools automatically.

2.Thick steel pipe structure ,well welded, no distortion for whole structure highprecision ,and long life time.

3.DSP controller system with USB interface,working without connecting with computer during working and easy to control.

4.Software:CAD/CAM designing software such as type3, Artcam,

5.Auto lubrication system ,easy to operate by pressing one key.

6.separated control system makes operation easily.

7.Adopt high speed YASKAWA SERVO motors and drivers,and two motors for Y axis.MAX speed is 40000mm/min.

Performance parameter:

NO.

Description

parameter

1

XYZ working area

1300*2500*200mm

2

Table size

1330*3640mm

3

XYZ travel positioning accuracy

±0.03mm

4

XYZ repositioning positioning accuracy

±0.03mm

5

Table surface

Vacuum and T-slot combined

6

frame

tube structure

7

drive system X-Y axis

Rack and pinion

8

drive system Z axis

Ball screw

9

Max power consumption

4.5KW

10

Max velocity

40000mm/min

11

Max working speed

25000mm/min

12

Spindle speed

0-24000rmp

13

work mode

Yaskawa Servo

14

Working voltage

AC380V

15

Command language

G code

16

Interface

USB

17

Operating system

DSP(option Syntec)

18

Flash memory

128M

19

X-Y resolution

0.02mm

20

Software environment

Type3, ArtCAM,UG,

21

Running environment

0-45 Degree

22

Packing size

3700*2200*1900mm

23

Net weight

1550KG

24

Gross weight

1790KG

 Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.





3 axis CNC router for woodworking are our selling models. These well-known companies are our suppliers, they are Siemens, HSD, Yaskawa, Delta. This engraving machine is mainly used in furniture and panel furniture industry. Considering to the customers'  different requirements about the sizes, we can provide different models.
