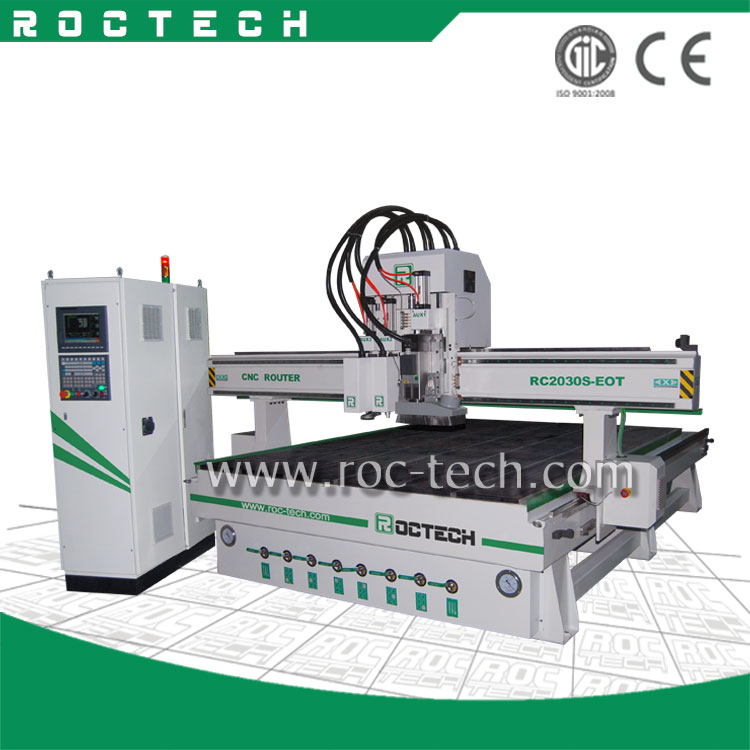

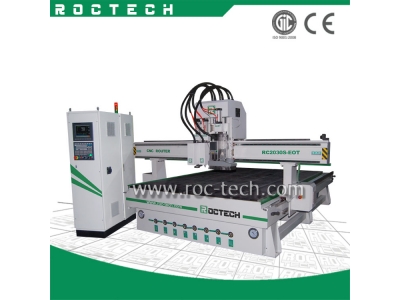

The machine is the best choice for woodworking industry and advertising industry. It is good at cutting and
engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials.Equipped with
Germany original EOT-2 and TCT-1, the machine is able to cut foam, cardboard, gasket material, foam rubber,
cork, one-sided blade for fine lines and soft polyurethane foam panels.
We use top quality components for the machine, such as HSD 7kw air cooling spindle, Yaskawa servo motor,
Delta Inverter, Hiwin linear, Taiwan Syntec 11MB control system and so on, to keep the machine in best condition
even after working for many years.
Performance parameter:
No |
Description |
Parameter |
1 |
X,Y,Z Working Area |
2000x3000x300mm |
2 |
Table Size |
2100X3500mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
0.03/300mm |
4 |
X,Y,Z Repositioning Positioning Accuracy |
0.03mm |
5 |
Table Surface |
T-slot table & Vacuum Combined |
6 |
Frame |
Welded Steel Structure |
7 |
X, Y ,Z Structure |
Hiwin Rail Linear and Ball Screw |
8 |
Max. power Consumption |
(Without Spindle) 4.2Kw |
9 |
Max. Rapid Travel Rate |
33000mm/min |
10 |
Max. Working Speed |
25000mm/min |
11 |
Spindle Power |
7kw HSD air cooling spindle |
12 |
Spindle Speed |
0-24000RPM |
13 |
Drive Motors |
Yaskawa Servo Motors |
14 |
Working Voltage |
AC380V/50/60Hz |
15 |
Command Language |
G Code |
16 |
Operating System |
Syntec System |
17 |
Collet |
ER32 |
18 |
X,Y Resolution |
<0.03mm |
19 |
Software Compatibility |
Type3, Artcam, Ucancam |
20 |
Packing Size |
2200 x 3600 x 1500mm |
21 |
Net Weight |
2000KG |
22 |
Gross Weight |
2300KG |
23 |
Running Environment Temperature |
0 – 45 Centigrade |
24 |
Relative Humidity |
30%~75% |
Guarantee & After Sales Service
1). The machine is guaranteed for 12 months.
2). Technical support by phone, e-mail or MSN around the clock.
3). Friendly English version manual and operation video CD disk.
