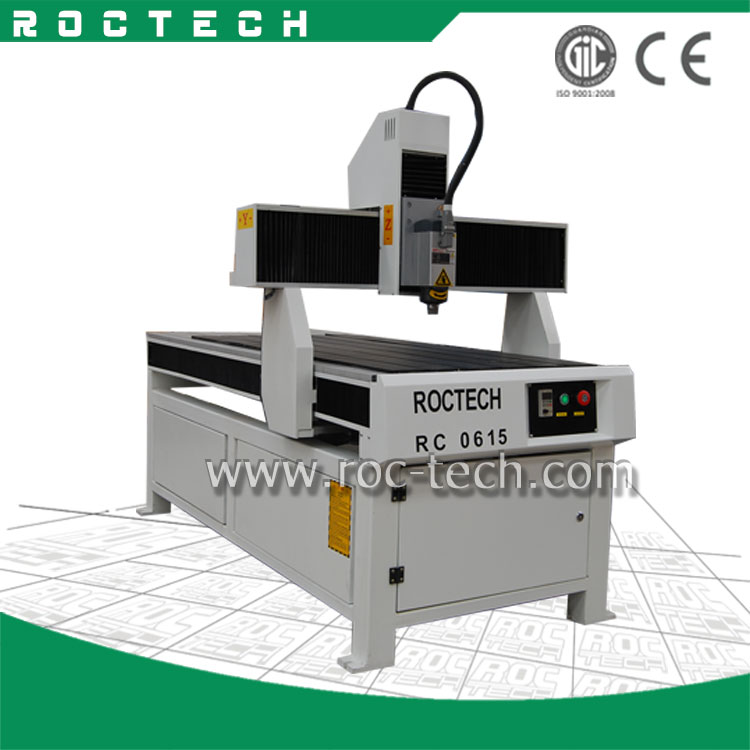

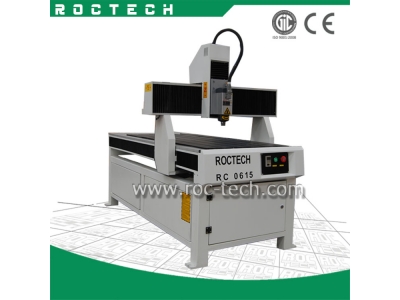

3D CNC Cutting Machine RC 0615
Special ordered size, with all axis DUST HOOD, professional for Woodworking, Metal cutting, Plastic.
Suitable Materials
All materials for woodworking, Metal cutting.
Performance parameter:
Number |
Discription |
Parameter |
1 |
X,Y,Z Working Area |
600x1500x120mm |
2 |
Table Size |
720X1850mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
0.01/300mm |
4 |
X,Y,Z repositioning Positioning Accuracy |
0.01mm |
5 |
Table Surface |
T-slot Extrusions |
6 |
Frame |
Welded steel structure |
7 |
X, Z Structure |
Ball Screw |
8 |
Y Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. power Consumption |
0.8Kw |
10 |
Max.Rapid Travel Rate |
9000mm/min |
11 |
Max.Working Speed |
6000mm/min |
12 |
Spindle Power |
1.5 water cooling spindle (option: 1.5kw HSD air spindle) |
13 |
Spindle Speed |
0-18000RPM |
14 |
Drive Motors |
Stepper system |
15 |
Working Voltage |
AC220V/50/60Hz |
16 |
Command Language |
G code |
17 |
Operating System |
DSP System (Mach3 PC Software) |
18 |
Interface |
USB |
19 |
Flash Memory |
128M(U Disk) |
20 |
Collet |
ER25 |
21 |
X,Y Resolution |
<0.01mm |
22 |
Software Compatability |
Type3 software (Option: Wentai software, Artcam software) |
23 |
Packing Size |
2150 x 1250 x 1585mm |
24 |
Net Weight |
240KG |
25 |
Gross Weight |
300KG |
26 |
Running Environment Temperature |
0-45 Relative humidity: 30%75% |
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
