CNC Routers

China 3 AXIS CNC ROUTER RC1325-STONE Manufacturers ,3 AXIS CNC ROUTER RC1325-STONE Suppliers Directory - Find a 3 AXIS CNC ROUTER RC1325-STONE Manufacturer and Supplier. Choose Quality 3 AXIS CNC ROUTER RC1325-STONE Manufacturers, Suppliers, Exporters at ROCTECH CNC router.

3 axis CNC Router-industry

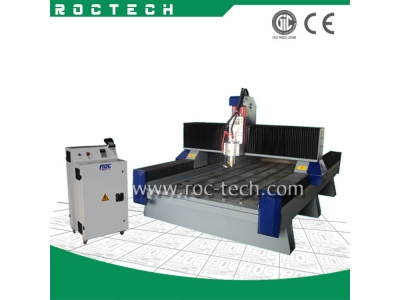

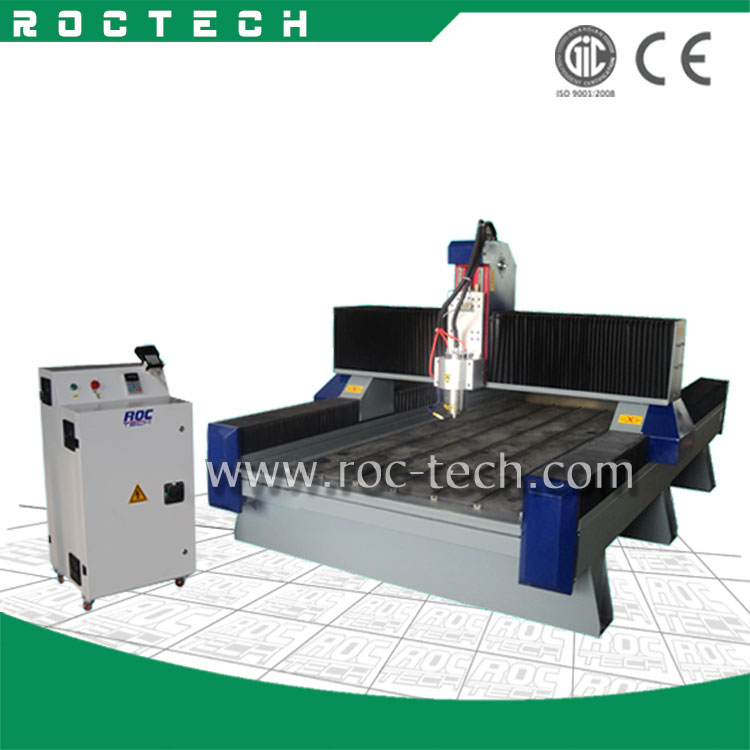

3 AXIS CNC ROUTER RC1325-STONE

3 AXIS CNC ROUTER RC1325-STONE
  • No.:1002473921
  • Brand :ROCTECH
  • Weight:2100KG

3 AXIS CNC ROUTER RC1325-STONE,Detailed

Features:

1.Frame: Welded Structure, very strong and stable.

2.DSP control system, Japanese servo motors.

3.Constant power spindle with great cutting capability and efficiency.

4.Application for granite. Marble, grit stone, tombstone engraving.

Performance Parameter:

NO.

Description

Parameter

1

X,Y,Z Working Area

1300x2500x200mm

2

Table Size

1360×2940mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Accuracy

±0.03mm

5

Frame

Welded Structure

7

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Engraving Speed

3000mm/min

10

Collect

3.175, 6, 12.7mm

14

Drive Motors

Stepper System

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

Operating System

DSP System     (options: Ncstudio/Mach3 PC Software)

18

Computer Interface

USB

19

Flash Memory

128M(U Disk)

21

X,Y Resolution

<0.03mm

22

Software Compatibility

Type3/UcancameV9 Software (Option: Artcam software)

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

Packing Size

3200X2200X2000mm

 Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.



3 axis CNC Router for industry has several machine types. The frame adopts welded structure, very strong and stable. Optional Taiwan Syntec Control System, imported Italian air cooling spindle, Japanese Yaskawa servo motors. The constant power spindle of CNC Router is with great cutting capability and efficiency. Application for the large format machining, like nylon, fiber-board and soft metal. Custom machines are available upon request.
