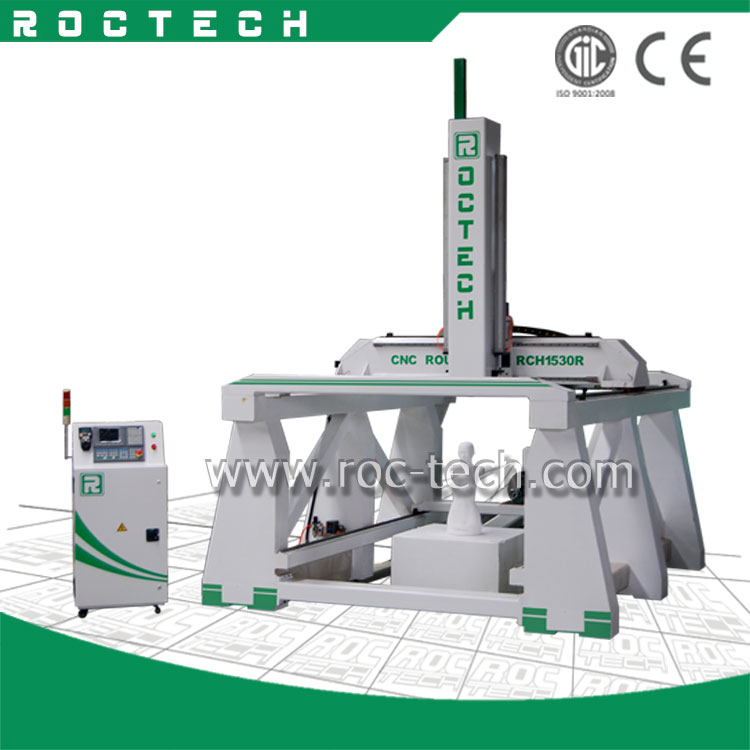

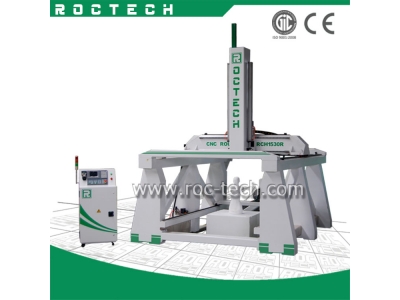

3 AXIS CNC ROUTER INDUSTRY RCH1530R

3 AXIS CNC ROUTER INDUSTRY RCH1530R
  • No.:10202473932
  • Brand :ROCTECH
  • Weight:8500KG

3 AXIS CNC ROUTER INDUSTRY RCH1530R,Detailed

Strong CNC Rotary Machine For Solid Wood RCH1530R

1.We use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine.

It can balance the force in all directions to ensure the machine’s accuracy and strength when engraving.
2.Fo this machine, we use big rotary with 1500mm diameter and 3000mm length, it is good for solid wood working.
3.The design documents of intelligent processing cross-border protection can prevent the excessive process

caused by mechanical impact.
4.The diversified processing speed can be controlled separately. The speed of idle running and roll setting improve

the quality of processed products and processing efficiency greatly.

Functional characteristics

Adopt Europe OSAI numerical control system, high machining accuracy and high speed.

Application:

Wood, EPS and non-metallic carbon hybrid materials.

Performance Parameter:

No.

Description

Parameter

1

X,Y,Z Working Area

1500x3000x1500mm

2

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

3

X,Y,Z repositioning Accuracy

±0.03mm

4

Table Surface

Rotary table

5

Frame

Welded structure (cast iron)

6

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

7

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

8

Max. Power Consumption

(Without spindle)  5.2Kw

9

Max. Rapid Travel Rate

40000mm/min

10

Max. Working Speed

25000mm/min

11

Spindle Power

7 KW

12

Spindle Speed

0-24000RPM

13

Drive Motors

1.3Kw Yaskawa servo motors

14

Working Voltage

AC380V/50/60Hz,3PH

15

Command Language

G code

16

Operating System

Syntec EZ4 control System(Osai)

17

Computer Interface

Ethernet

18

Flash Memory

256 M(with CF card)

19

Collet

ER32

20

X,Y Resolution

<0.03mm

21

Software Compatibility

Type3, UcancameV9, Powermill, Artcam software

22

Running Temperature

0 - 45 degree

23

Relative Humidity

30% - 75%

24

Packing Size

3000*4700*4500mm

25

N.W.

8200KG

26

G.W.

8500KG

27

Guarantee

One year from the date of commission

28

Optional Parts

Air cooling spindle or Water cooling spindle

Dust collector

Rotary system

Mist-cooling system

Panasonic Servo motors/Delta servo motors

Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.



3 axis CNC Router for industry has several machine types. The frame adopts welded structure, very strong and stable. Optional Taiwan Syntec Control System, imported Italian air cooling spindle, Japanese Yaskawa servo motors. The constant power spindle of CNC Router is with great cutting capability and efficiency. Application for the large format machining, like nylon, fiber-board and soft metal. Custom machines are available upon request.
