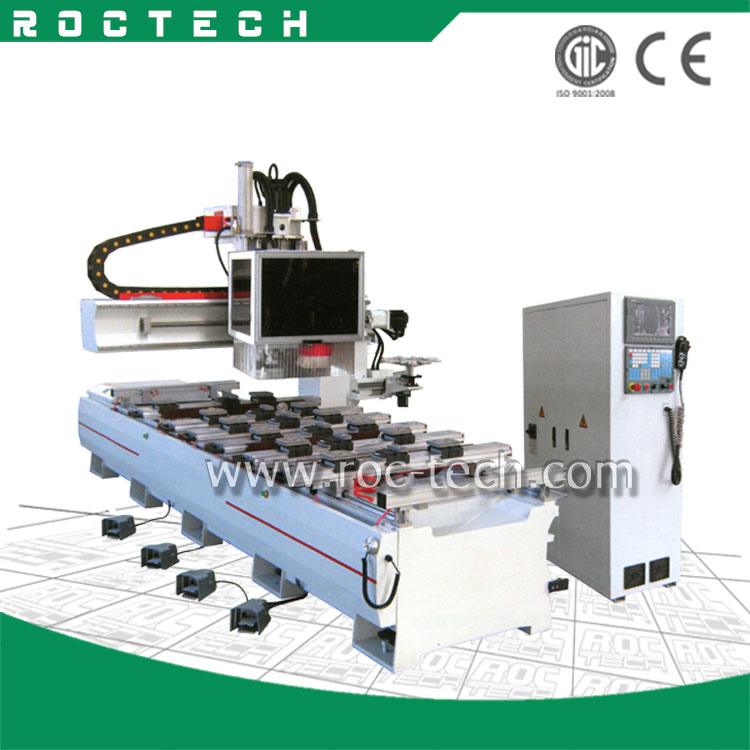

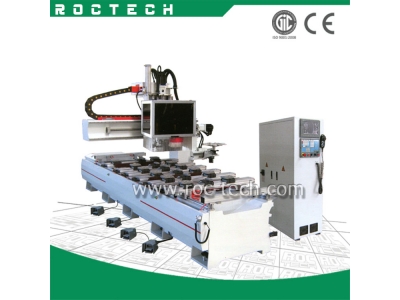

3 AXIS SINGLE ARM MACHINE CENTER RC1434SA

3 AXIS SINGLE ARM MACHINE CENTER RC1434SA
  • No.:10202473917
  • Brand :ROCTECH
  • Weight:3100KG

3 AXIS SINGLE ARM MACHINE CENTER RC1434SA ,Detailed

Features:

1.The machine is special designed for woodworking. With high-efficiency, it is suitable for various

 complex processing of work pieces, it is widely used for engraving, drilling, cutting, milling, chamfer etc.



2.Advanced components are equipped on our CNC routers, such as Germany vacuum system, Japanese

servo driving system and Italian spindles etc.

3.Carrousel ATC (auto tool change) system; tool magazine capacity: 8; tool change time: 8 seconds;

engraving speed:20 m/min;



4.Z-axis travel can be heightened to 350mm, so that very suitable for processing large-scale

three-dimensional surface.



Application:

Panel furniture industry: wood furniture, solid wood doors, decorative materials, cabinet doors, computer tables,

mahjong table, office furniture, wooden sound box, wooden furniture, kitchenware and other processing. It is applies

to non-metallic mold, automobile mold, foam processing industry.



Performance parameter:

No.

Description

Parameter

1

X,Y,Z Working Area

1400x3400x350mm

2

Table Size

1500×4000mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z repositioning Accuracy

±0.03mm

5

Table Surface

Vacuum pad clamping, moving beam

6

Frame

Welded structure

7

Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

X, Z Structure

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption

(Without spindle)  5.0Kw

10

Max. Rapid Travel Rate

30000mm/min

11

Max. Working Speed

20000mm/min

12

Spindle Power

9.0KW

13

Spindle Speed

0-24000RPM

14

Drive Motors

Yaskawa servo system(Option:siemens servo motor)

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G code

17

Operating System

Syntec 10A(Option:siemens/Osai control system)

18

Computer Interface

Ethernet

19

Flash Memory

256 M(with CF card)

20

Collet

ISO30(ER32)

21

X,Y Resolution

<0.03mm

22

Software Compatibility

Becam/Type3/UcancameV9 software, (Option: Artcam software)

23

Running Temperature

0 - 45 degree

24

Relative Humidity

30% - 75%

25

Packing Size

2200X4500X2300mm

26

N.W.

2850KG

27

G.W.

3100KG

28

Options:

Dust collector

Panasonic Servo motors/Delta servo motors

 Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.





3 axis CNC Router for industry has several machine types. The frame adopts welded structure, very strong and stable. Optional Taiwan Syntec Control System, imported Italian air cooling spindle, Japanese Yaskawa servo motors. The constant power spindle of CNC Router is with great cutting capability and efficiency. Application for the large format machining, like nylon, fiber-board and soft metal. Custom machines are available upon request.
