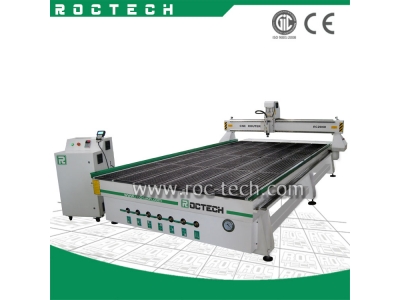

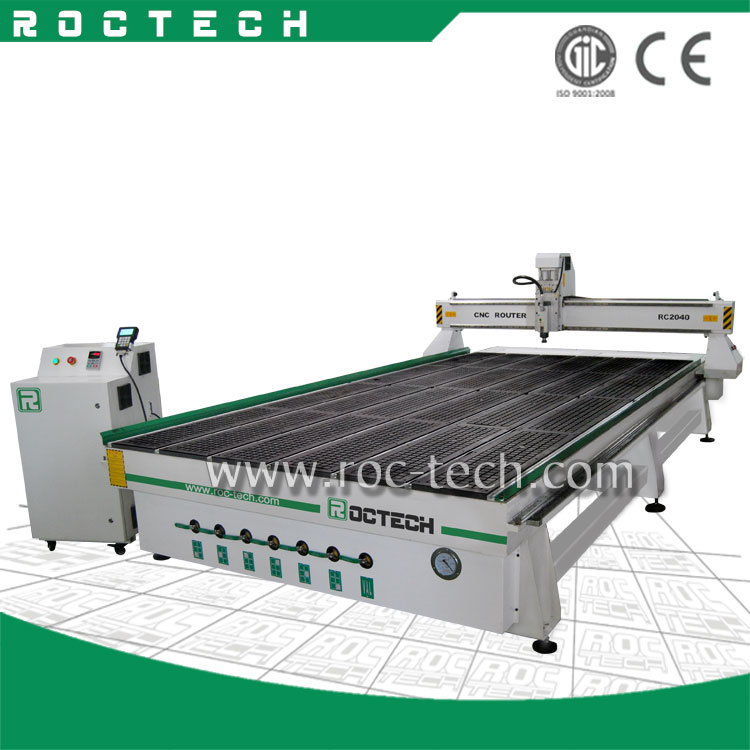

3 AXIS CNC ROUTER WOODWORKING RC2040

3 AXIS CNC ROUTER WOODWORKING RC2040
  • No.:10202473931
  • Brand :ROCTECH
  • Weight:2650KG

3 AXIS CNC ROUTER WOODWORKING RC2040,Detailed

CNC Router RC 2040 is fit for hard wood working, Big size and mass producing, like cutting and engraving on Rosewood for furniture, indoor decoration. And with the Vacuum holding way and dust collector, the machine is qualified

for mass-producing of furniture.25mm square rails of HIWIN, or ABBA(SKF),  2510 TBI ball screw for Z axis,

strong and thick belt for transmission.

Optional functions:

HSD spindles, air cooling from 4.5kw to 6 kw, Delta inverter, Yaskawa servo system. Syntec control system.

Performance Parameter:

NO.

Description

Parameter

1

X,Y,Z Working Area

2000x4000x200mm

2

Table Size

2030×4500mm

3

X,Y,Z Traveling Positioning  Accuracy

±0.02/300mm

4

X,Y,Z Repositioning Positioning Accuracy

±0.02mm

5

Table Surface

T-slot combined table

6

Frame

Welded structure

7

X, Y Structure

Rack and Pinion Drive, Square Rail Linear Bearings

8

Z Structure

TBI  Ball Screw, Square Rail Linear Bearings

9

Max.Power Consumption

3.0Kw (Without spindle)

10

Max.Rapid Travel Rate

33000mm/min

11

Max.Working Speed

25000mm/min

12

Spindle Power Motor

4.5Kw HSD air cooling spindles

13

Spindle Speed

0-18000RPM

14

Drive Motors

Stepper system  (Option: Yaskawa servo, Panasonic servo)

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

16

Command Language

G Code

17

Operating System

DSP offline control system  with 128M inner memory

18

Interface

USB

19

Collet

ER32

20

X,Y Resolution

<0.02mm

21

Software Compatability

Type3 software,(Option: any Cam software)

22

Running Environment

 0°C~45°C degree



23

Packing Size

5200X2250X1970mm

24

Net Weight

2360KG

25

Gross Weight

2650KG

Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.







3 axis CNC Router for industry has several machine types. The frame adopts welded structure, very strong and stable. Optional Taiwan Syntec Control System, imported Italian air cooling spindle, Japanese Yaskawa servo motors. The constant power spindle of CNC Router is with great cutting capability and efficiency. Application for the large format machining, like nylon, fiber-board and soft metal. Custom machines are available upon request.
