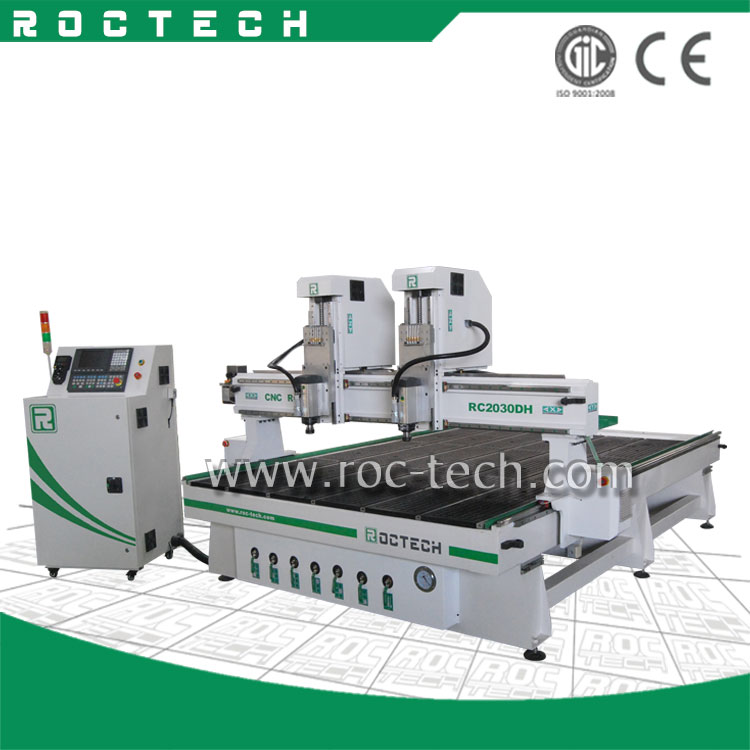

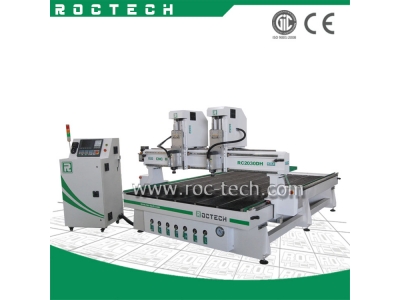

3 AXIS CNC ROUTERR INDUDTRY RC2030DH

3 AXIS CNC ROUTERR INDUDTRY RC2030DH
  • No.:10202473927
  • Brand :ROCTECH
  • Weight:7500KG

3 AXIS CNC ROUTERR INDUDTRY RC2030DH,Detailed

Features:

1.We use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine.

It can balance the force in all directions to ensure the machine’s accuracy and strength when engraving.


2.The route of Z axis can be heightened to 1200mm, so it is suitable for processing large-scale and

super-thick material.


3.The design documents of intelligent processing cross-border protection can prevent the excessive process

 caused by mechanical impact.


4.The diversified processing speed can be controlled separately. The speed of idle running and roll setting improve the

quality of processed products and processing efficiency greatly.



Functional characteristics:

Adopt Europe OSAI numerical control system, high machining accuracy and high speed.



Application:

Wood, EPS and non-metallic carbon hybrid materials.



Die and mold industries:

Non-metallic mold: the machine is particularly suitable for automotive foam mold, wooden ship model,

wooden model aviation, trains and other wooden mold.


Musical instrument industry:

Can carve three dimension musical instrument, contour cutting;



Performance Parameter:

No.

Description

Parameter

1

X,Y,Z Working Area

2000x3000x900mm

2

Table Size

2400×3500mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z repositioning Accuracy

±0.03mm

5

Table Surface

Milling steel table

6

Frame

Welded structure (cast iron)

7

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption

(Without spindle)  8.0Kw

10

Max. Rapid Travel Rate

40000mm/min

11

Max. Working Speed

25000mm/min

12

Spindle Power

12.0KW

13

Spindle Speed

0-24000RPM

14

Drive Motors

Yaskawa servo system (Option: Siemens )

15

Working Voltage

AC380V/50/60Hz,3PH

16

Command Language

G code

17

Operating System

Syntec control System ( Option: Siemens ,Osai)

18

Computer Interface

Ethernet

19

Flash Memory

256 M(with CF card)

20

Collet

ER32 (BT30)

21

X,Y Resolution

<0.03mm

22

Software Compatibility

Type3, UcancameV9, Artcam software

23

Running Environment  Temperature

0degree - 45 degree

24

Relative Humidity

30% - 75%

25

Packing Size

2300X4800X1900mm (in parts)

26

N.W.

6800KG

27

G.W.

7500KG

28

Guarantee

One year from the date of commission

29

Optional Parts

Air cooling spindle or Water cooling spindle

Dust collector

Rotary system

Mist-cooling system

Panasonic Servo motors/Delta servo motors

Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.





3 axis CNC Router for industry has several machine types. The frame adopts welded structure, very strong and stable. Optional Taiwan Syntec Control System, imported Italian air cooling spindle, Japanese Yaskawa servo motors. The constant power spindle of CNC Router is with great cutting capability and efficiency. Application for the large format machining, like nylon, fiber-board and soft metal. Custom machines are available upon request.
