3 axis CNC Router-industry

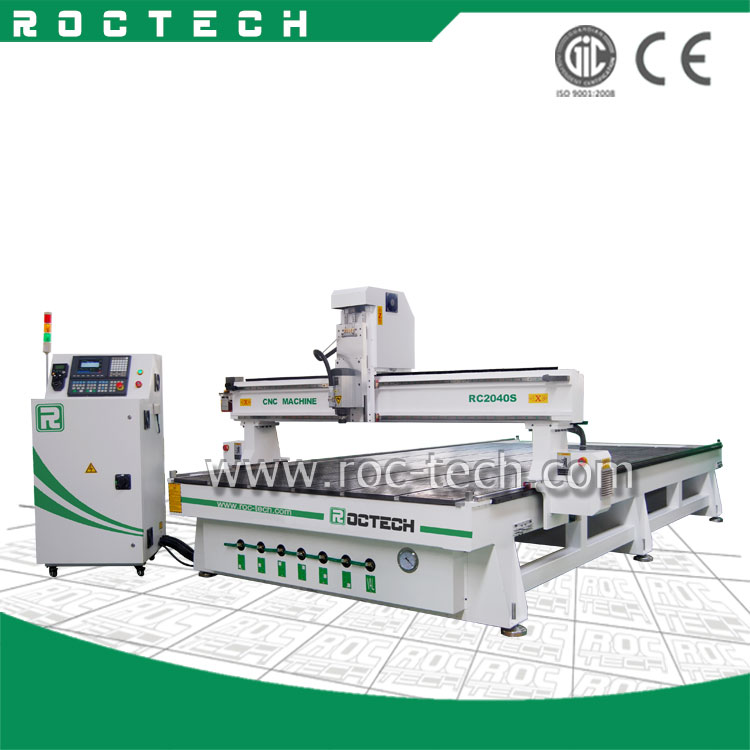

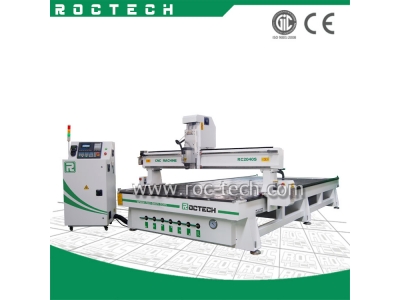

3 AXIS CNC ROUTER INDUSTRY RC2040S

3 AXIS CNC ROUTER INDUSTRY RC2040S
  • No.:102024739159
  • Brand :ROCTECH
  • Weight:3100KG

3 AXIS CNC ROUTER INDUSTRY RC2040S,Detailed

CNC Cutting Machine RC 2040S

1.With hard steel structure, working with 850W Yakskawa servo, Syntec control system,  Vacuum pump and working

size 2000mm *4000mm, it is fit for heavy industrial, the working table can carry more than 1000KG material.

And fit for hard wood working as well.

2.Bigger size and mass producing, like cutting and engraving on Hard acrylic, Rosewood for furniture, indoor decoration.

And with the Vacuum holding way and dust collector, the machine is qualified for mass-producing of furniture.25mm

square rails of HIWIN, or ABBA, or PMI, 2510 TBI ball screw for Z axis, strong and thick belt for transmission.

Performance Parameter:

No.

Description

Parameter

1

X,Y,Z Working Area:

2000x4000x200mm

2

Table Size:

2100×4400mm

3

X,Y,Z Traveling Positioning Accuracy:

±0.01/300mm

4

X,Y,Z repositioning Accuracy:

±0.01mm

5

Table Surface:

Vacuum and  T-slot combined (Option: T-slot table)

6

Frame:

 Welded structure

7

X, Y Structure:

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

Z Structure:

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption:

(Without spindle)  4.5Kw

10

Max. Rapid Travel Rate:

40000mm/min

11

Max. Working Speed:

25000mm/min

12

Spindle Power:

3.0/4.5/6/7KW

13

Spindle Speed:

0-18000RPM

14

Drive Motors:

Yaskawa servo system

15

Working Voltage:

 AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language:

G code

17

Operating System:

Syntech control System(options: DSP/Ncstudio/Mach3 PC Software)

18

Computer Interface:

Ethernet

19

Flash Memory:

256M(with CF card)

20

Collet:

ER25

21

X,Y Resolution

 <0.01mm

22

Software Compatibility:

Type3/UcancameV9 software, (Option: Artcam software)

23

Running  Temperature:

0- 45 degree

24

Relative Humidity:

30% - 75%

25

Packing Size:

2300X4800X1900mm

26

N.W.:

 2950KG

27

G.W.:

3100KG

28

Guarantee

One year from the date of commission

29

Optional Parts

Air cooling spindle or Water cooling spindle

Dust collector

Rotary system

Mist-cooling system

Panasonic Servo motors/Delta servo motors

 Guarantee & After Sales Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by phone, email or msn.
3) Friendly English version manual and operation video CD disc.



3 axis CNC Router for industry has several machine types. The frame adopts welded structure, very strong and stable. Optional Taiwan Syntec Control System, imported Italian air cooling spindle, Japanese Yaskawa servo motors. The constant power spindle of CNC Router is with great cutting capability and efficiency. Application for the large format machining, like nylon, fiber-board and soft metal. Custom machines are available upon request.
