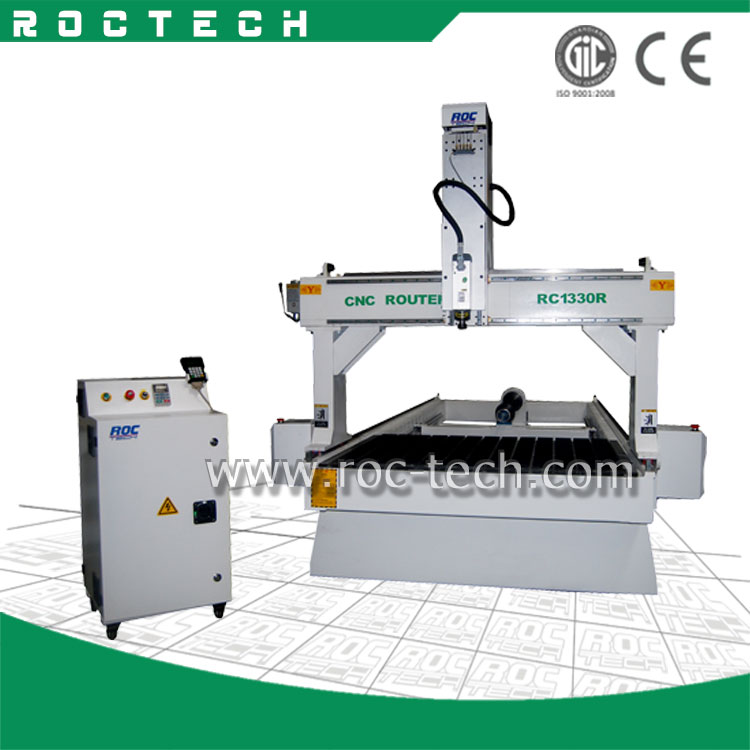

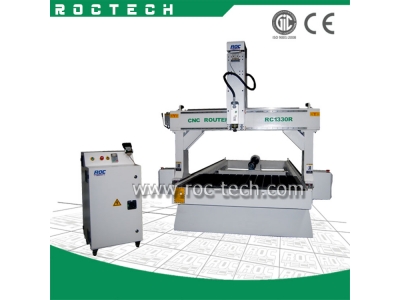

3 AXIS CNC ROUTER INDUSTRY RC1330R

3 AXIS CNC ROUTER INDUSTRY RC1330R
  • No.:10202473919
  • Brand :Roctech
  • Weight:2100KG

3 AXIS CNC ROUTER INDUSTRY RC1330R,Detailed

Features:

This machine is a special order from our costumer (specially designed for Big Rotary engraving), which with 2500mm

length panel T-slot table, and 1500mm length rotary type table. The machine works with 400mm Z(height)

working size, and 600mm for the rotary, and the rotary can carry 1200mm diameter, 1500mm length cylinder.

We use 850W Japan Yaskawa servo motors,3.0kw HSD spindle, Delta inverter and Dust collector for this

machine which is qualified for form working and woodworking, big size and mass producing.With hard steel

structure, the machine is fit for hard wood working, like cutting and engraving on Rosewood for furniture,

indoor decoration, and it is qualified for mass- producing of furniture with the Vacuum holding way and

dust collector.



Top Quality Components:

1. The machine’s body is strong, high-precision, reliable and durable.

2. Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.

3. High-performance driven motor to ensure the machine’s high speed and accuracy.

4. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions

in case of the accidental power outages.

5. Auto lubrication system and separated control system, easy to operate.

6. High speed servo motors and drivers, and two motors for Y axis.

7. Perfect design, top quality accessories, to minimize the machine’s failure rate.



Performance parameter:

NO.

Description

Parameter

1

X,Y,Z Working Area

1300x3000x400mm

2

Table Size

1500×4000mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Accuracy

±0.03mm

5

Table Surface

T-slot table and rotary

6

Frame

Welded Structure

7

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption

(Without spindle)  4.2Kw

10

Max. Rapid Travel Rate

35000mm/min

11

Max. Working Speed

25000mm/min

12

Spindle Power

3.0KW

13

Spindle Speed

0-18000RPM

14

Drive Motors

Servo System

15

Working Voltage

AC380V, 50/60Hz,3PH (Option: 220V)

16

Command Language

G Code

17

Operating System

DSP System     (options: Ncstudio/Mach3 PC Software)

18

Computer Interface

USB

19

Flash Memory

128M(U Disk)

20

Collet

ER25

21

X,Y Resolution

<0.03mm

22

Software Compatibility

Type3/UcancameV9 Software (Option: Artcam software)

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

Packing Size

5100X2300X2200mm

26

N.W.

1800KG

27

G.W.

2100KG

28

Optional Parts

Air Cooling Spindle or Water Cooling Spindle

Syntec Control System

Dust Collector

Vacuum Pump

Rotary System

Mist-cooling System

Delta  /750W Panasonic Servo Motors

 Guarantee & After Sales Service:

1. The machine is guaranteed for 12 months.
2. Technical support by phone, email or MSN around the clock.
3. Friendly English version manual and operation video CD disk.





3 axis CNC Router for industry has several machine types. The frame adopts welded structure, very strong and stable. Optional Taiwan Syntec Control System, imported Italian air cooling spindle, Japanese Yaskawa servo motors. The constant power spindle of CNC Router is with great cutting capability and efficiency. Application for the large format machining, like nylon, fiber-board and soft metal. Custom machines are available upon request.
