3 axis CNC Router-advertising

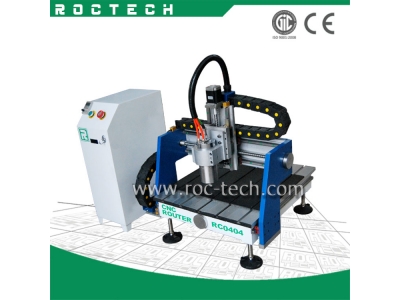

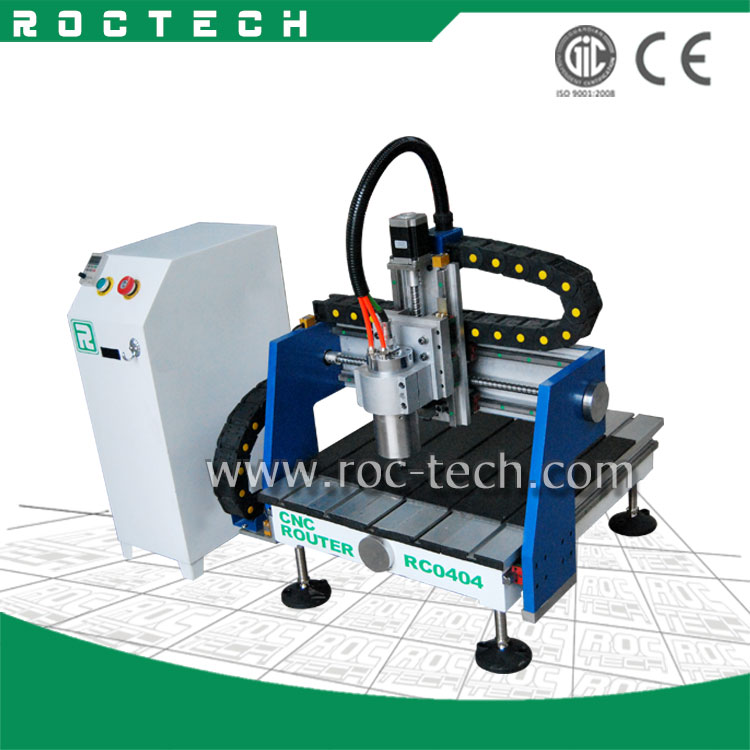

3 AXIS CNC ROUTER ADVERTISING RC0404

3 AXIS CNC ROUTER ADVERTISING RC0404
  • No.:10202473916
  • Brand :ROCTECH
  • Weight:150KG

3 AXIS CNC ROUTER ADVERTISING RC0404,Detailed

Brief introduction

This machine is the smallest CNC Router in our company. It is good at engraving on brass, aluminum, plastic, acrylic,

wood,MDF and other similar materials. It is the table type CNC router, is the best choice for small piece materials working,

so you can use it in the office or at home.We use accuracy LM linear (HIWIN) for Y axis, with options like water chiller,

mist spray system...etc.With T-slot table, holding the materials with clamps, High precision, you can do many jobs for

sign making, wood artwork…

Performance Parameter:

No

Description

Parameter

1

X,Y,Z Working area:

400x400x90mm

2

Table Size:

450x640 mm

3

Table Surface:

T-slot table

4

Frame:

Cast Iron

5

X, Z Structure:

Round rails and TBI ball Screw,

6

Y Structure:

Ball Screw,  Hiwin Rail Linear Bearings

7

Max. Power Consumption (Without spindle):

0.8 KW

8

Max. Rapid Travel Rate:

8000mm/min

9

 Max. Working Speed:

5000mm/min

10

Spindle Power:

1.5kw water cooling spindle

11

Spindle Speed:

0-24000RPM

12

Drive Motors:

 Stepper system

13

Working Voltage:

 AC220V/50/60Hz,1 Phs

14

Command Language:

 G Code

15

 Operating System:

DSP System(options: Ncstudio/Mach3 PC Software)

16

Software Compatibility:

Type3/UcancameV9 software,(Option: Artcam software)

17

Running Environment  Temperature:

0degree - 45 degree

18

Relative Humidity:

30% - 75%

19

Computer interface:

USB

20

Flash Memory:

128M(U Disk)

21

 X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

22

X,Y,Z Repositioning Accuracy:

±0.01

23

X,Y Resolution

 <0.01mm

24

Collet:

ER16

25

Packing Size:

900X900X900mm

26

N.W.:

100kg

27

G.W.:

150KG

Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
