3 axis CNC Router-advertising

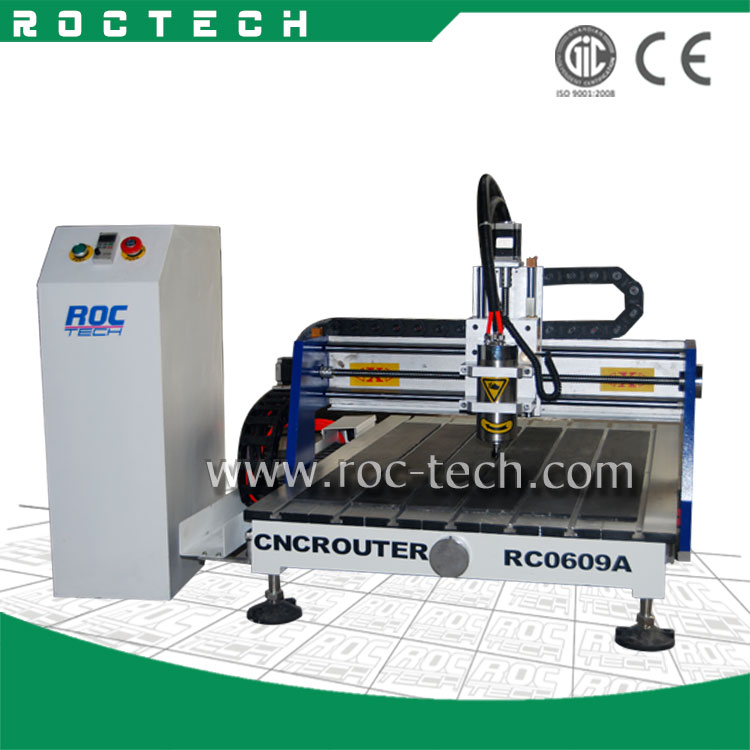

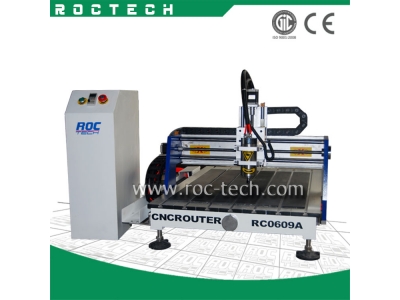

3 AXIS CNC ROUERR ADVERTISING RC0609A

3 AXIS CNC ROUERR ADVERTISING RC0609A
  • No.:102024739150
  • Brand :ROCTECH
  • Weight:190KG

3 AXIS CNC ROUERR ADVERTISING RC0609A,Detailed

Features:

1.This machine with the humanity design, it is very good for advertising working. It is good at engraving

on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials. It is the table type CNC router,

is the best choice for small piece materials working, so you can use it in the office or at home.

2.We use accuracy LM linear (HIWIN) for Y axis, with options like water chiller, mist spray system...etc.

3.With T-slot table, holding the materials with clamps, High precision, you can do many jobs for sign making,

wood artwork..

Performance parameter:

No.

Description

Parameter

1

X,Y,Z Working Area:

600x900x90 mm

2

Table Size:

720X1140mm

3

X,Y,Z Traveling Positioning Accuracy:

±0.01/300mm

4

X,Y,Z repositioning Accuracy:

±0.01mm

5

Table Surface:

T-slot table

6

Frame:

 Cast Iron

7

X, Z Structure:

Round rails and TBI ball Screw,

8

Y Structure:

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption:

0.8Kw

10

Max. Rapid Travel Rate:

10000mm/min

11

Max. Working Speed:

6000mm/min

12

Spindle Power:

1.5Kw water cooling spindle

13

Spindle Speed:

0-24000RPM

14

Drive Motors:

Stepper system

15

Working Voltage:

AC220V/50/60Hz, 1Phs

16

Command Language:

G code

17

Operating System:

DSP System (options: Ncstudio/Mach3 PC Software)

18

Computer Interface:

USB

19

Flash Memory:

128M(U Disk)

20

Collet:

ER16

21

X,Y Resolution

 <0.01mm

22

Software Compatibility:

Type3/UcancameV9 software,(Option: Artcam software)

23

Running Environment  Temperature:

0- 45 degree

24

Relative Humidity:

30% - 75%

25

Packing Size:

1400*1300*1000mm

26

N.W.:

160KG

27

G.W.:

190KG

28

Guarantee:

One year from the date of commission

 Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
