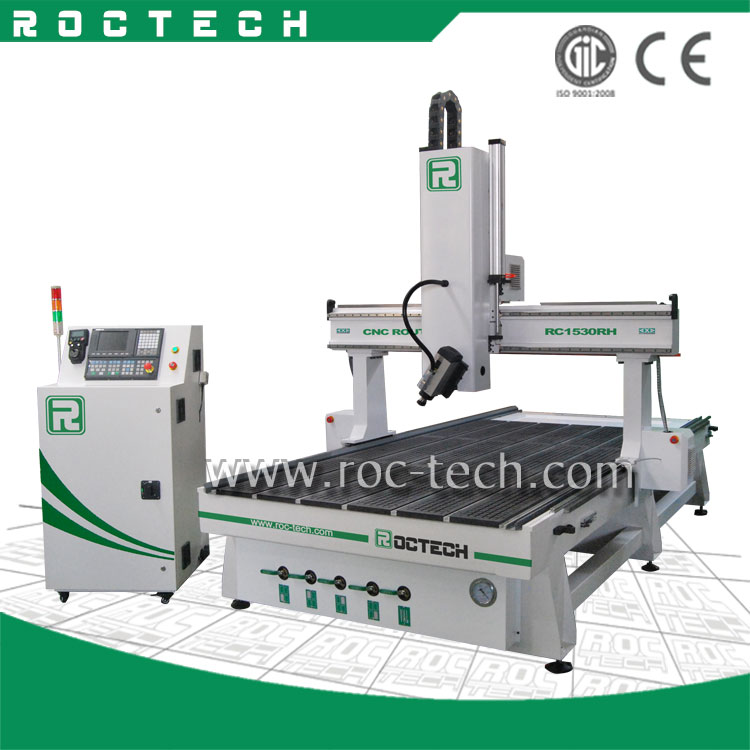

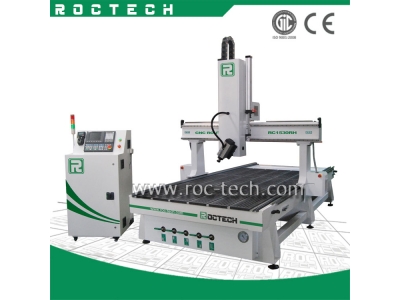

With hard steel structure, the machine is fit for hard wood working, like cutting and engraving on Rosewood for furniture,
indoor decoration, and it is qualified for mass- producing of furniture
with the Vacuum holding way and dust collector.We use top quality components for the machine, such as HSD spindle,
andthe spindle can rotate 180 degree, Delta Inverter, Becker Vacuum pump,Hiwin linear, Syntec control system and
so on, to keepthe machine in the best condition even after working for many years.
Top Quality Components:
1. The machine’s body is strong, high-precision, reliable and durable.
2. Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3. Well-known HSD spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4. High-performance driven motor to ensure the machine’s high speed and accuracy.
5. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions
in case of the accidental power outages
6. Auto lubrication system and separated control system, easy to operate.
7. Perfect design, top quality accessories, to minimize the machine’s failure rate
.
Performance Parameter:
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1500x3000x600mm |
2 |
Table Size |
1650×3440mm |
3 |
X,Y,Z Traveling Positioning
Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning
Accuracy |
±0.03mm |
5 |
Table Surface |
Vacuum and T-slot Combin(Option:T-slot Table) |
6 |
Frame |
Big Steel Tube Structure |
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without Spindle) 4.5Kw |
10 |
Max. Rapid Travel Rate |
40000mm/min |
11 |
Max. Working Speed |
30000mm/min |
12 |
Spindle Power |
9KW |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
850W Yaskawa Motors(Option: Siemens servo motors) |
15 |
Working Voltage |
AC380V/50/60Hz,3PH(Option: 220V) |
16 |
Command Language |
G Code |
17 |
Operating System |
Syntec Control System(Option:Siemens controller) |
18 |
Computer Interface |
Ethernet |
19 |
Flash Memory |
512M |
20 |
Collet |
ER32 |
21 |
X,Y Resolution |
<0.03mm |
22 |
Software Compatibility |
Type3/UcancameV9 software (Option: Artcam software) |
23 |
Running Environment
Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3300X2100X2300mm |
26 |
N.W. |
2950KG |
27 |
G.W. |
3150KG |
28 |
Optional Parts |
Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump |
||
Rotary System |
||
Mist-cooling System |
||
Delta/ Panasonic Servo Motors |
||
Colombo Spindle |
Guarantee & After Sales Service:
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
