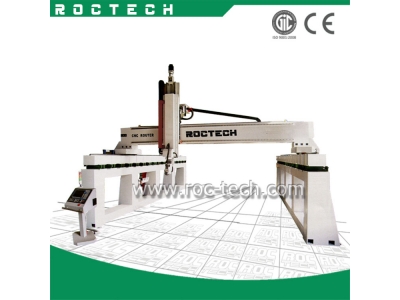

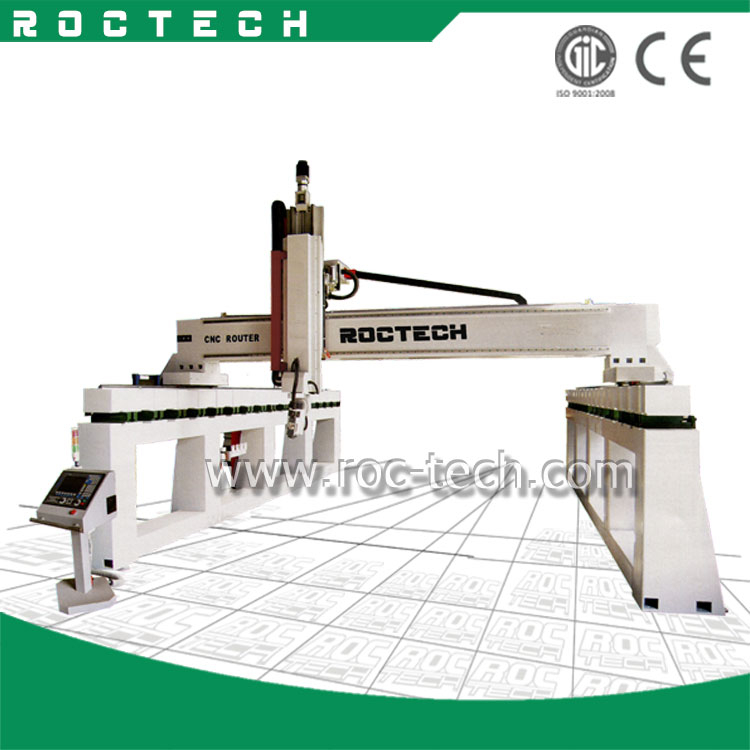

With OSAI numerical control system, the machine is of high speed and high machining accuracy. The Japan THK
rails and the Germany original rotating arm ensure the accuracy and strength of the machine.
Z-axis travel can be heightened to 1.2 meters, so it is very suitable for processing large-scale three-dimensional
surface, special for cars model.
The intelligent processing cross-border protection function can prevent the excessive processing caused by
mechanical collision.
Diversified control processing speed can control the working speed, traveling speed and dropping tool speed, and
it improves the quality andefficiency greatly.
Applicable industries:
Mold industry: Various large metalloid moulds, especially suitable for automotive foam mold, wooden ship model, wooden
model aviation, rail woodenmold and wooden mold train.Instrument industry: 3D surface engraving and shape cutting
of large-scale instruments.
Performance parameter:
NO. |
Description |
parameter |
1 |
X Y Z C A Axis working area |
2500*6000*1200mm* 213degree*±180degree |
2 |
Table size |
2750*6100mm |
3 |
Positioning accuracy |
±0.03/300mm |
4 |
Reposition positioning accuracy |
±0.03/300mm |
5 |
Frame |
heavy steel |
6 |
Drive system X,Y axis |
Rack and pinion |
7 |
Drive system Z axis |
Ball screw |
8 |
Max power consumption |
10.0KW |
9 |
Max velocity |
25000mm/min |
10 |
Max working speed |
15000mm/min |
12 |
Spindle speed |
0-24000rmp |
13 |
work mode |
Yaskawa servo |
14 |
Working voltage |
AC380V (220V) |
15 |
Command language |
G code |
16 |
Interface |
CF card, Ethernet |
17 |
Operating system |
Osai |
18 |
Flash memory |
512M |
19 |
X-Y resolution |
0.03/300mm |
20 |
Software |
UGS, Alpha Cam,Becam,Type3, UcancamV9 |
21 |
Running |
Temperature:0 -45 centigrade |
22 |
Packing size |
6300*2200*2000mm (in parts) |
23 |
Net weight |
10000KG |
24 |
Gross weight |
10200KG |
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
