5 axis CNC Router

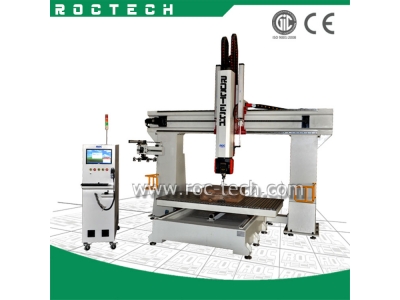

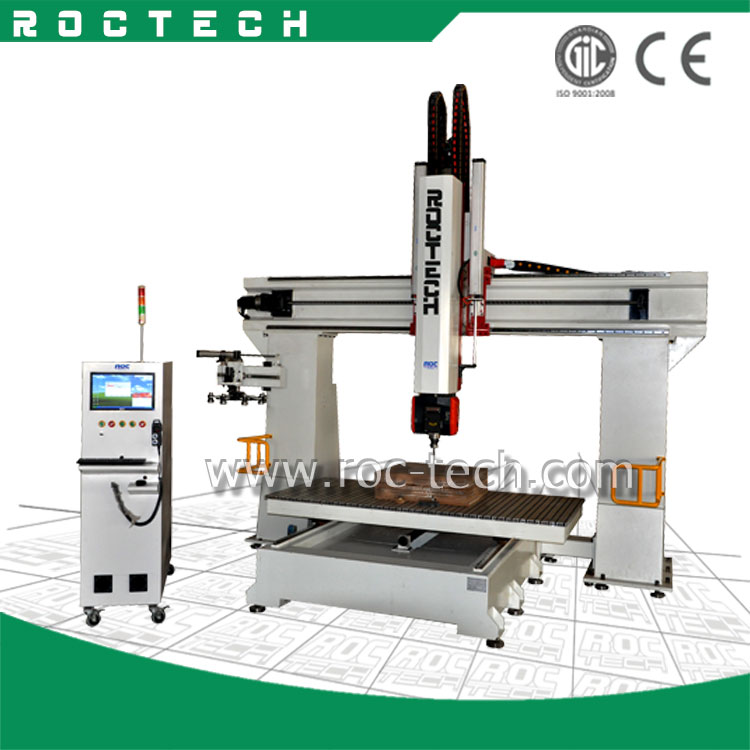

CNC ROUTER 5-AXIS RCF1325

No.:10202521616
Brand :ROCTECH
Weight:7500kgs

CNC ROUTER 5-AXIS RCF1325,Detailed

Brief introduction:
With OSAI numerical control system, the machine is of high speed and high machining accuracy. The Hiwin linear rails

and the Germany original rotating arm ensure the accuracy and strength of the machine.

Z-axis travel can be heightened to 1.2 meters, so it is very suitable for processing large-scale three-dimensional

surface,special for cars model.

The intelligent processing cross-border protection function can prevent the excessive processing caused by

mechanical collision.

Diversified control processing speed can control the working speed, traveling speed and dropping tool speed, and it

improves the quality and efficiency greatly.

Applicable industries:
Mold industry: Various large metalloid moulds, especially suitable for automotive foam mold, wooden ship model,

aviation wooden mold, rail wooden mold and train wooden mold.

Instrument industry: 3D surface engraving and shape cutting of large-scale instruments.

Performance parameter

NO.	Description	parameter
1	X Y Z C A Axis working area	13002500900mm* ±213degree*±120degree
2	Table size	800*2800mm
3	Positioning accuracy	±0.03/300mm
4	Reposition positioning accuracy	±0.03/300mm
5	Frame	Heavy steel
6	Drive system X,Y,Z axis	Ball screw
7	Max power consumption	10.0KW
8	Max velocity	25000mm/min
9	Max working speed	15000mm/min
10	Spindle power	15.0kw ATC spindle
11	Spindle speed	0-24000rmp
12	Drive motor	Yaskawa servo 1.8KW
13	Working voltage	AC380V
14	Command language	G code
15	Interface	Ethernet
16	Operating system	Italian Osai
17	Flash memory	PC control
18	Toolholder and collet	HSK F63/ ER40
19	X-Y resolution	0.03/300mm
20	Software	Alpha Cam,Becam,Type3, UcancamV9
21	Running Temperature:	0 -45 centigrade
22	Packing size	520030002200mm (in parts)
23	Net weight	13T
24	Gross weight	14T

4. Guarantee & After Sales Service

1). The machine is guaranteed for 12 months.
2). Technical support by phone, e-mail or MSN around the clock.
3). Friendly English version manual and operation video CD disk.Brief introduction:

5 axis stone machining center (cnc router 5 axis ) is with the highest accuracy and fastest speed among the wood cnc routers. Italy Osai and Janpanese Yaskawa are big suppliers for 5 axis cnc machine. This large sized machining are applied in mold industry and instrument industry, such as automotive foam mold, wooden ship mold, wooden aviation mold,3D surface engraving and shape cutting of large-scale instruments etc. The machinable materials of 5 axis machining center are wood, EPS, epoxy,and plastocene. Intelligent processing cross-border protection to prevent excessive collisions caused by machinery. Diversified control processing speed can controll operating speed, which greatly improves the processing quality and efficiency.
