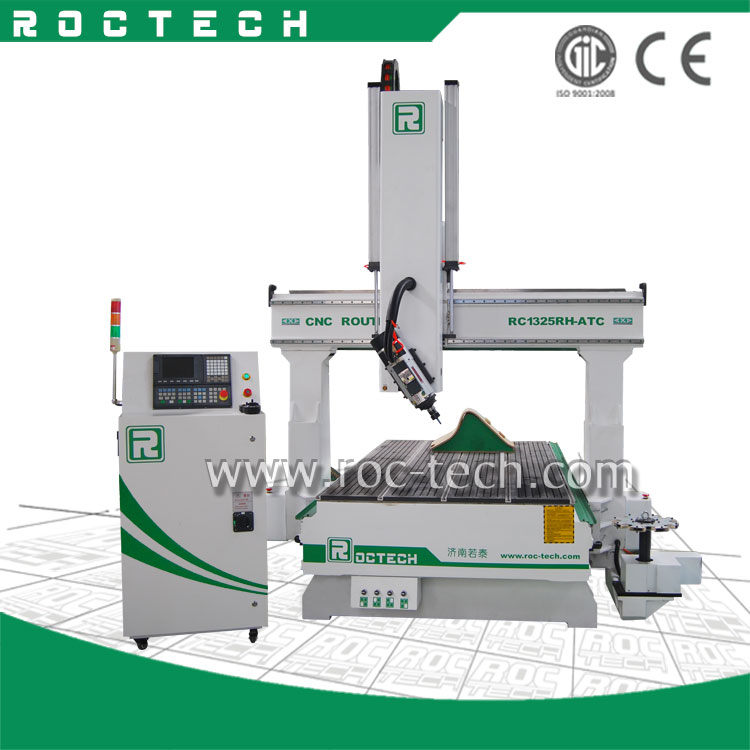

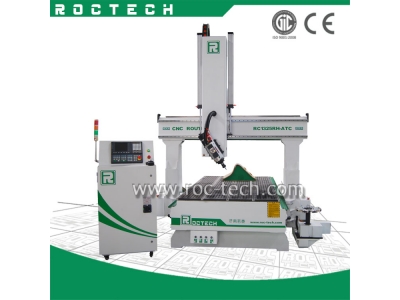

4 AXIS CNC ROUTER RC1325RH-ATC

4 AXIS CNC ROUTER RC1325RH-ATC
  • No.:10202224216
  • Brand :ROCTECH
  • Weight:2150KG

4 AXIS CNC ROUTER RC1325RH-ATC,Detailed

1.Machine IntroductionThe spindle can rotate ± 90 degree, can make multi-kinds of surface which we can design

 with Software.We use We use top quality components for the machines, like HSD spindle, Syntech control system,

Delta Inverter, Yaskawa servo motors, and separate control box,  Hiwin linear and so on, to keep the machine in the

 best condition even after many years working.

There are options for the specifications:Bigger power HSD spindle, Colombo spindles, Vacuum &T-slot combined table,

With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture,indoor

decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of furniture.

We use the best quality parts for the CNC routers:

1. The machines’ body is strong, rigid, high precision, reliable and durable.

2. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision..

3. Using well-known Italian HSD ATC air-cooled spindle, strong cutting ability, to ensure the long time working.

4. High-performance driven motor to ensure that the machines high speed and accuracy.

5. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred.

6. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to

 ensure that accidental processing.

Performance Parameter

Number

Description

Parameter

1

X,Y,Z Working Area

1300x2500x400mm±90degree

2

Table Size

1450×2940mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Accuracy:

±0.03mm

5

Table Surface

Vacuum and  T-slot Combined (Option: T-slot Table)

6

Frame

Big Steel Tube Structure

7

X, Y Structure

Rack and Pinion Drive,Hiwin Rail Linear Bearings

8

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption

(Without Spindle)  4.5Kw

10

Max. Rapid Travel Rate

40000mm/min

11

Max. Working Speed

30000mm/min

12

Spindle Power

9.0KW

13

Spindle Speed

0-24000RPM

14

Drive Motors

850W Yaskawa Motors(Option: Siemens servo motors)

15

Working Voltage

AC380V/50/60Hz,3PH

16

Command Language

G Code

17

Operating System

Syntec Control System(Option:Siemens controller)

18

Computer Interface

Ethernet

19

Flash Memory

512M

20

Collet

ER32

21

X,Y Resolution

<0.03mm

22

Software Compatibility

Type3/UcancameV9 software (Option: Artcam software)

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

Packing Size

3300X2100X2300mm

26

N.W.

2650KG

27

G.W.

2850KG

28

Optional Parts

Dust Collector/ Dust Hoods for three Axis

Vacuum Pump

Rotary System

Mist-cooling System

Delta/ Panasonic Servo Motors

Colombo Spindle

Guarantee & After Sales Service:
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.



4 axis CNC router is researched and developed by our own business and access to the national patent. The most outstanding advantage of this CNC machine is that the spindle can rotate 180 degree ,very suitable for siding milling, drilling, lock slot, can process various kinds of curved surface. Carrousel Tool Change System of 4 axis CNC Router are with 8 forks, which saves time than the original machine. Also Intelligent processing cross-border protection function can prevent the excessive processing caused by mechanical collision and customized special are acceptable for this kind of engraving machine. The 4 axis CNC Router is widely used in woodworking industry, like doors, cabinet, loudspeakers, musical instruments and decoration industry, like MDF, Acrylic, PVC, copper, aluminum, soft mental.
