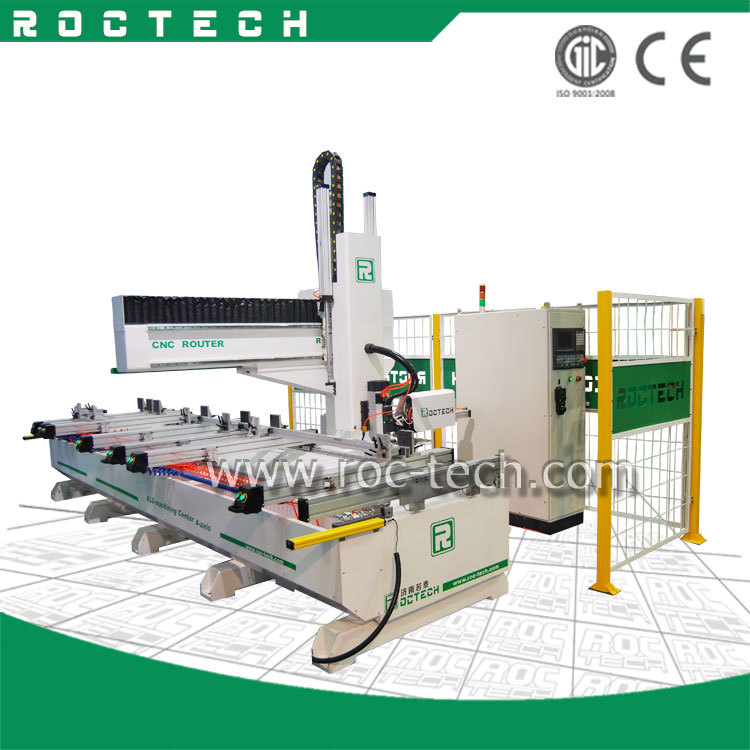

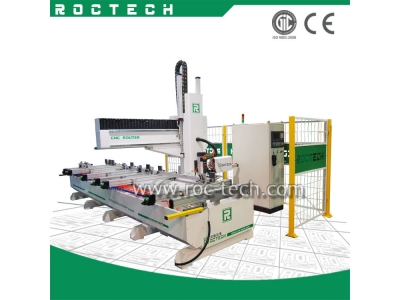

4 AXIS ALUMINUM MACHINING CENTER RC1240SA

4 AXIS ALUMINUM MACHINING CENTER RC1240SA
  • No.:100024739
  • Brand :ROCTECH
  • Weight:4400KG

4 AXIS ALUMINUM MACHINING CENTER RC1240SA,Detailed

The spindle can rotate 180 degree, can make multi-kinds of surface which we can design with Software.

Features:

1.     Syntec Controller, Japanese 40mm THK Linear Rails, Yaskawa Servo Motor and Driver, Italian ATC HSD spindle.

2.     Carrousel Tool Magazine system, save processing time than the traditional machine

3.     Special designed for processing launder, taping, milling, mounting hole, locking hole and other slots for diversified

        curtain walls and aluminum doors and windows.

4.     The length travel can be 12000mm.

Performance parameter:

No.

Description

Parameter

1

X,Y,Z Working Area

1200*4000*300mm*±90degree

2

Table Size

1300×3400mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300

4

X,Y,Z repositioning Accuracy

±0.03mm

5

Table Surface

moving beam

6

Frame

 Welded Structure

7

Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

X,Z Structure

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption

(Without spindle)  6.5Kw

10

Max. Rapid Travel Rate

20000mm/min

11

Max. Working Speed

10000mm/min

12

Spindle Power

9/12Kw

13

Spindle Speed

0-24000RPM

14

Drive Motors

Yaskawa servo system(Option: Siemens servo motors)

15

Working Voltage

AC380V, 50/60Hz, 3Ph

16

Command Language

G code

17

Operating System

Syntec Control(Option:Siemens controller)

18

Computer Interface

Ethernet

19

Flash Memory

512 M(with CF card)

20

Collet

ISO30, ER32

21

X,Y Resolution

<0.03mm

22

Software Compatibility

UG, Visual Mill Power Mill, MasterCam, Vetric Pro, Alpha cam

23

Running Environment  Temperature

0 - 45 centigrade

24

Relative Humidity

30% - 75%

25

Packing Size

2300X4800X1900mm

26

N.W.

3100KG

27

G.W.

4400KG

28

Optional Parts

Air cooling spindle or Water cooling spindle

Fanuc control system

Mist-cooling system

Guarantee & After Sales Service:
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.



4 axis CNC router is researched and developed by our own business and access to the national patent. The most outstanding advantage of this CNC machine is that the spindle can rotate 180 degree ,very suitable for siding milling, drilling, lock slot, can process various kinds of curved surface. Carrousel Tool Change System of 4 axis CNC Router are with 8 forks, which saves time than the original machine. Also Intelligent processing cross-border protection function can prevent the excessive processing caused by mechanical collision and customized special are acceptable for this kind of engraving machine. The 4 axis CNC Router is widely used in woodworking industry, like doors, cabinet, loudspeakers, musical instruments and decoration industry, like MDF, Acrylic, PVC, copper, aluminum, soft mental.
