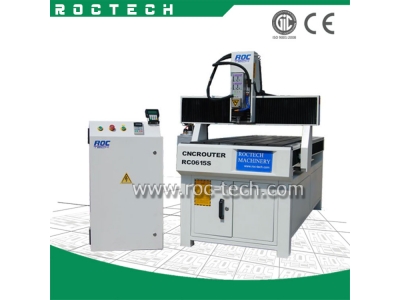

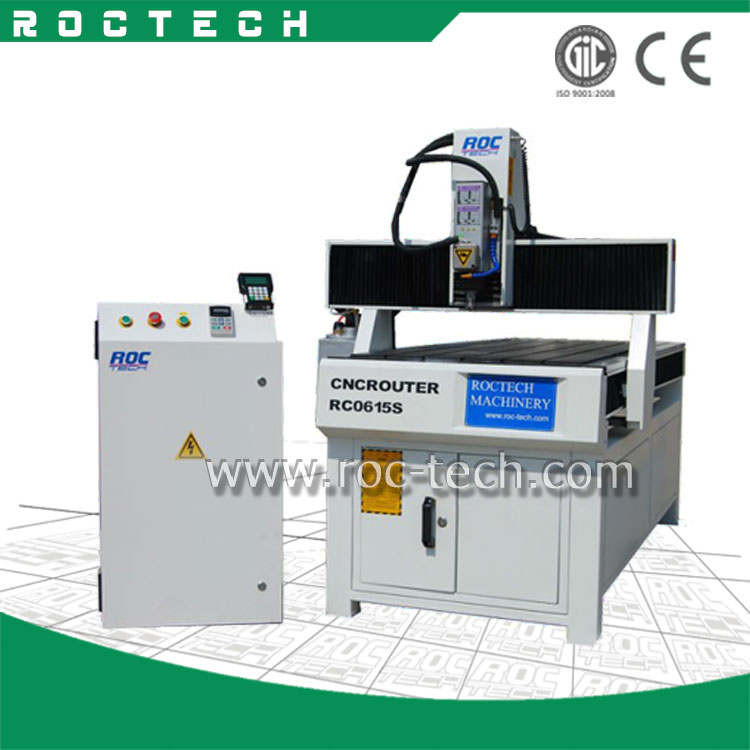

Roctech CNC Router RC0615S,
CNC Router RC0615S, Special order: Yaskawa servo system and mist cooling system, professional for Woodworking,
soft Metal, Plastic engraving.
Performance Parameter:
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
600x1500x120mm |
2 |
Table Size |
720X1850mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
0.01/300mm |
4 |
X,Y,Z repositioning Positioning Accuracy |
0.01mm |
5 |
Table Surface |
T-slot Extrusions |
6 |
Frame |
Welded Steel structure |
7 |
X, Z Structure |
Ball Screw |
8 |
Y Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. power Consumption |
0.8Kw |
10 |
Max.Rapid Travel Rate |
9000mm/min |
11 |
Max.Working Speed |
6000mm/min |
12 |
Spindle Power |
2.2 kw colombo air cooling spindle |
13 |
Spindle Speed |
0-18000RPM |
14 |
Drive Motors |
Yaskawa servo system |
15 |
Working Voltage |
AC220V/50/60Hz |
16 |
Command Language |
G code |
17 |
Operating System |
DSP System (Mach3 PC Software) |
18 |
Interface |
USB |
19 |
Flash Memory |
128M(U Disk) |
20 |
Collet |
ER25 |
21 |
X,Y Resolution |
<0.01mm |
22 |
Software Compatability |
Type3 software, Wentai software, (Option:Artcam software) |
23 |
Packing Size |
2150 x 1250 x 1585mm |
24 |
Net Weight |
240KG |
25 |
Gross Weight |
300KG |
26 |
Running Environment Temperature |
0-45 Degree |
Guarantee & After Sales Service
1.) The machine is guaranteed for 12 months.
2.) Technical support by phone, email or MSN around the clock.
3.) Friendly English version manual and operation video CD disk.
