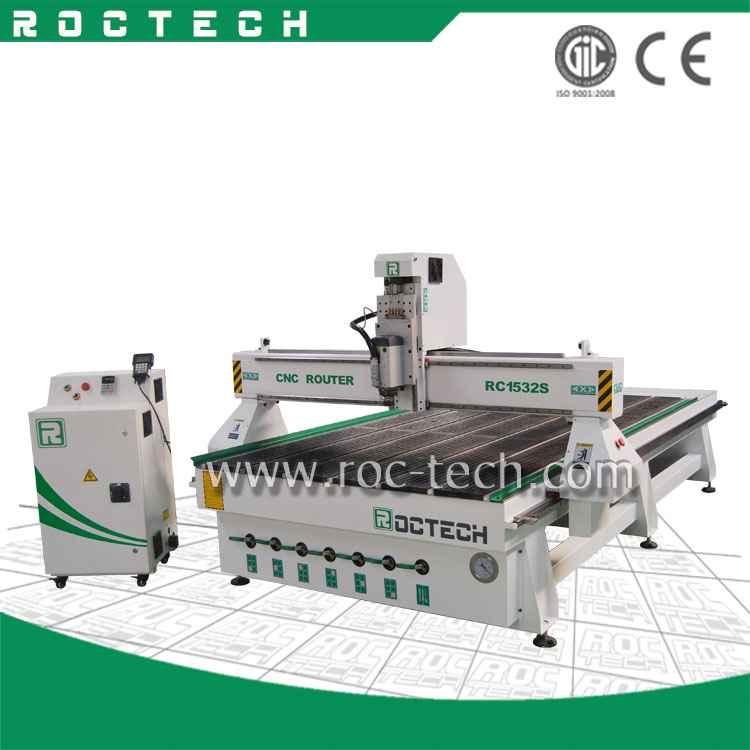

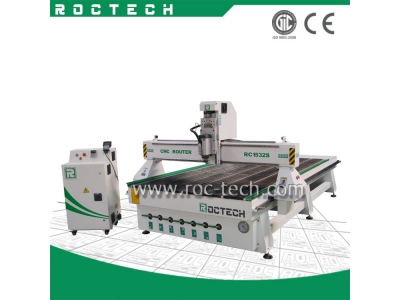

Roctech CNC Router RC1532
1. Machine brief introduction:
With hard steel structure, CNC Router RC 1532 is fit for hard wood working, like cutting and engraving on Rosewood
for furniture, indoor decoration. And with the Vacuum holding way and dust collector, the machine is qualified for
mass- producing of furniture.
2. Top Quality Components:
We use top quality components for the machines, like HSD spindle, Delta Inverter, Becker Vacuum pump, Hiwin linear
and so on,to keep the machine in the best condition even after many years working.
1. The machines’ body is strong, rigid, high precision, reliable and durable.
2. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
3. Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the
long time working.
4. High-performance driven motor to ensure that the machines high speed and accuracy
5. Designer perfectly, selects the best machine accessories, to minimize the failure rate preferred
6. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure
that accidental processing
3. Performance parameter :
No. |
Description |
Parameter |
1 |
X,Y,Z Working Area: |
1532x3000x200mm |
2 |
Table Size: |
1752×3540mm |
3 |
X,Y,Z Traveling Positioning Accuracy: |
±0.03/300mm |
4 |
X,Y,Z repositioning Accuracy: |
±0.03mm |
5 |
Table Surface: |
Vacuum and T-slot combined(Option: T-slot table) |
6 |
Frame: |
Welded structure |
7 |
X, Y Structure: |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure: |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption: |
(Without spindle) 2.0Kw |
10 |
Max. Rapid Travel Rate: |
33000mm/min |
11 |
Max. Working Speed: |
25000mm/min |
12 |
Spindle Power: |
3.0/4.5/6/7KW |
13 |
Spindle Speed: |
0-18000RPM |
14 |
Drive Motors: |
Stepper system |
15 |
Working Voltage: |
AC380V/50/60Hz,3PH (Option: 220V)) |
16 |
Command Language: |
G code |
17 |
Operating System: |
DSP System (options: Ncstudio/Mach3 PC Software) |
18 |
Computer Interface: |
USB |
19 |
Flash Memory: |
128M(U Disk) |
20 |
Collet: |
ER25 |
21 |
X,Y Resolution |
<0.03mm |
22 |
Software Compatibility: |
Type3/UcancameV9 software,(Option: Artcam software) |
23 |
Running Environment Temperature: |
0degree - 45 degree |
24 |
Relative Humidity: |
30% - 75% |
25 |
Packing Size: |
3700X2100X2050mm |
26 |
N.W.: |
1750KG |
27 |
G.W.: |
1980KG |
28 |
Guarantee |
One year from the date of commission |
29 |
Optional Parts |
Air cooling spindle or Water cooling spindle |
Syntec control system |
||
Dust collector/ Dust hoods for three axis |
||
Vacuum Pump |
||
Rotary system |
||
Mist-cooling system |
||
850W Yaskawa/800W Panasonic Servo motors |
4.Guarantee & After Sales Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by phone, email or msn.
3) Friendly English version manual and operation video CD disc.
