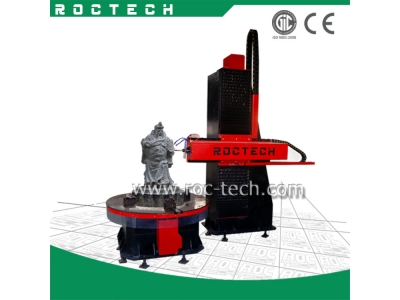

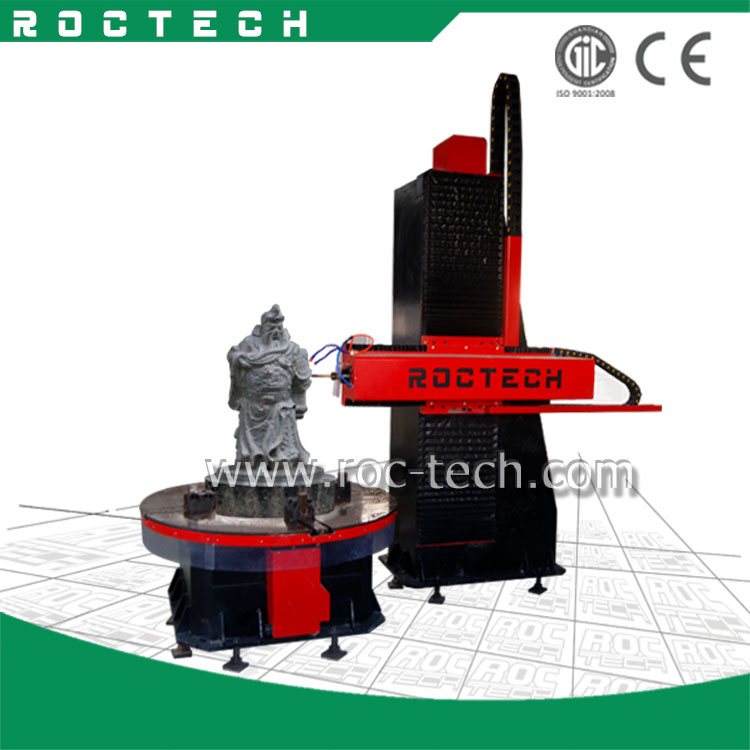

CNC Rotary Machine RC1016R- Stone
1. Machine brief introduction:
This machine only with rotary system, specially for round and square stone.The rotary iswith 1000mm diameter,
1600mm length, 500mm Z(horizontal) working size.
We use top quality components for the machine, such as Italian HSD spindle, Delta Inverter, Japanese Yaskawa
servo motors, Hiwin linear and so on, to keep the machine in the best condition even after working for many years.
2. Top Quality Components:
The machine is with heavy welded structure, with cement inside, to keep the stability.
2.) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3.) Well-known Italian HSD air cooling spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4.) High-performance Japanese servo drive motor to ensure the machine’s high speed and accuracy.
5.) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions
in case of the accidental power outages
6.) Perfect design, top quality accessories, to minimize the machine’s failure rate.
7.)Application for art designing, special for making statues and sculptures model, buddha curved surface.
3. Performance parameter
Number |
Description |
Parameter |
1 |
X,C,Z Working Area |
1600x1000x500mm |
2 |
X,C,Z Traveling Positioning Accuracy |
±0.01/300 |
3 |
X,C,Z Repositioning Accuracy |
±0.01mm |
4 |
Frame |
Heavy Welded Structure |
5 |
X Structure |
30mm Hiwin Rail Linear and 3210 TBI Ball Screw |
6 |
Z Structure |
25mm Hiwin Rail Linear and 2510 TBI Ball Screw |
7 |
Max. Power Consumption |
(Without spindle) 3.5Kw |
8 |
Max. Rapid Travel Rate for C axis |
30rpm |
9 |
Max. Working Speed |
15000mm/min |
10 |
Spindle Power |
7KW |
11 |
Spindle Speed |
0-24000RPM |
12 |
Drive Motors |
Servo System(X and rotary 1300W, Z 850W) |
13 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
14 |
Command Language |
G Code |
15 |
Operating System |
DSP System (options: Ncstudio/Mach3 PC Software) |
16 |
Computer Interface |
USB |
17 |
Flash Memory |
128M(U Disk) |
18 |
Collet |
ER32 |
19 |
X,Y Resolution |
<0.01mm |
20 |
Software Compatibility |
Type3/UcancameV9 Software (Option: Artcam software) |
21 |
Running Environment Temperature |
0 - 45 Centigrade |
22 |
Relative Humidity |
30% - 75% |
23 |
Packing Size |
1800X2000X2800mm&1500*1500*1000mm |
24 |
N.W. |
5500KG |
25 |
G.W. |
5600KG |
26 |
Optional |
Syntec Control System |
5. Guarantee & After Sales Service
1.) The machine is guaranteed for 12 months.
2.) Technical support by phone, email or MSN around the clock.
3.) Friendly English version manual and operation video CD disk.
