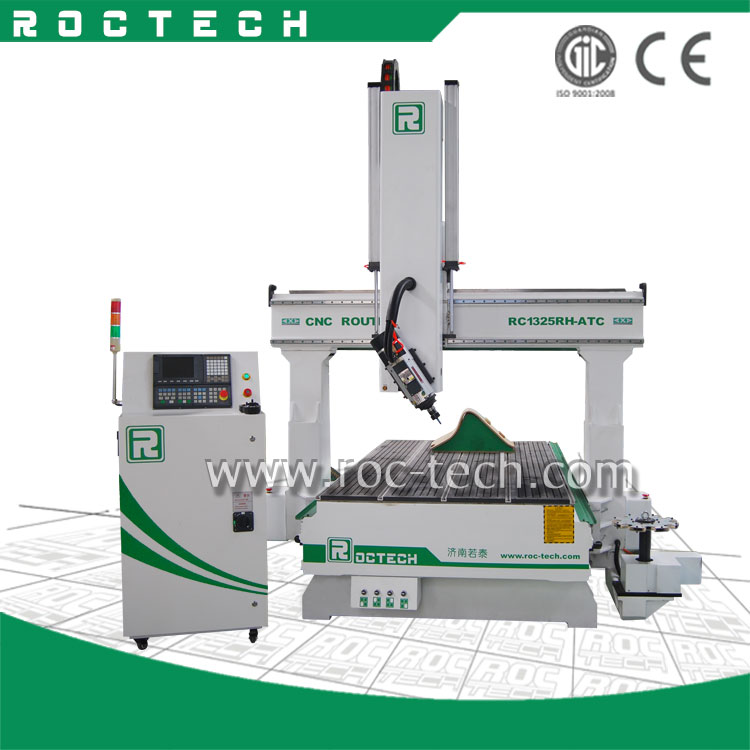

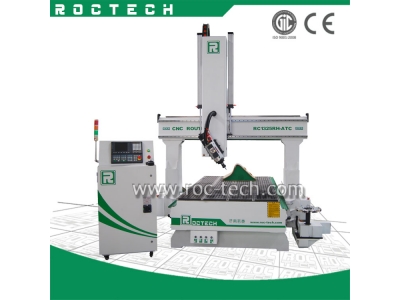

4 Axis CNC Router RC1325RH-ATC
Features:
The spindle can rotate 180 degree, can make multi-kinds of surface which we can design with Software.We use top
quality components for the machines, like HSD spindle, Syntech EZ-4M control system, Delta Inverter, Yaskawa
servo motors, and separate control box, Hiwin linear and so on, to keep the machine in the best condition even
after many years working. There are options for the specifications:Bigger power HSD spindle, Colombo spindles,
Vacuum &T-slot combined table,With hard steel structure, is fit for hard wood working, like cutting and engraving on
Rosewood for furniture, indoor decoration. And with the Vacuum holding way and dust collector, the machine is qualified
for mass- producing of furniture.
We use the best quality parts for the CNC routers:
1. The machines’ body is strong, rigid, high precision, reliable and durable.
2. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision..
3. Using well-known Italian HSD ATC air-cooled spindle, strong cutting ability, to ensure the long time working.
4. High-performance driven motor to ensure that the machines high speed and accuracy
5. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred
6. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to
ensure that accidental processing
Performance Parameter
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300x2500x400mm*180degree |
2 |
Table Size |
1450×2940mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z Repositioning Accuracy: |
±0.03mm |
5 |
Table Surface |
Vacuum and T-slot Combined (Option: T-slot Table) |
6 |
Frame |
Big Steel Tube Structure |
7 |
X, Y Structure |
Rack and Pinion Drive,
Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without Spindle) 4.5Kw |
10 |
Max. Rapid Travel Rate |
40000mm/min |
11 |
Max. Working Speed |
30000mm/min |
12 |
Spindle Power |
9.0KW |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
850W Yaskawa Motors(Option: Siemens servo motors) |
15 |
Working Voltage |
AC380V/50/60Hz,3PH |
16 |
Command Language |
G Code |
17 |
Operating System |
Syntec Control System(Option:Siemens controller) |
18 |
Computer Interface |
Ethernet |
19 |
Flash Memory |
512M |
20 |
Collet |
ER32 |
21 |
X,Y Resolution |
<0.03mm |
22 |
Software Compatibility |
Type3/UcancameV9 software (Option: Artcam software) |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3300X2100X2300mm |
26 |
N.W. |
1750KG |
27 |
G.W. |
2150KG |
28 |
Optional Parts |
Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump |
||
Rotary System |
||
Mist-cooling System |
||
Delta/ Panasonic Servo Motors |
||
Colombo Spindle |
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
