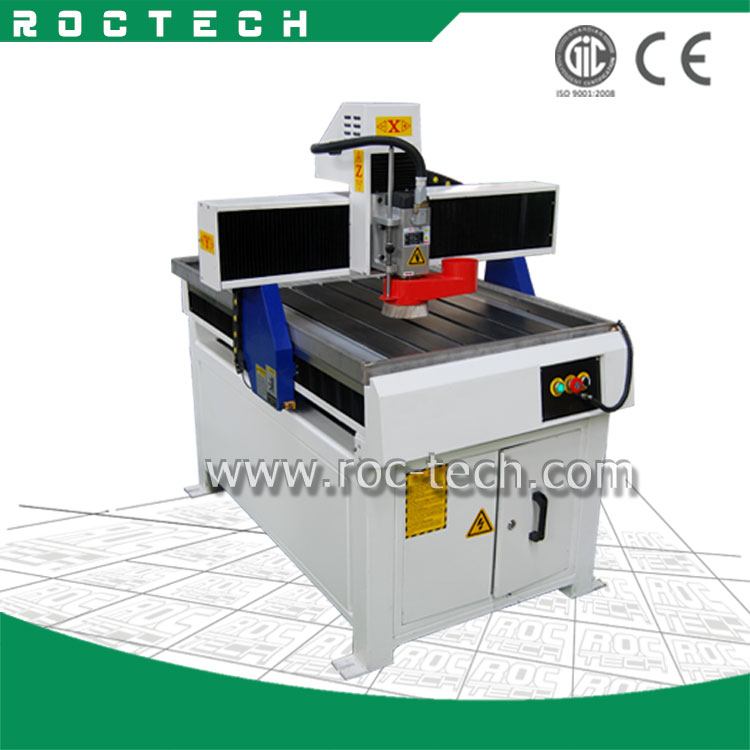

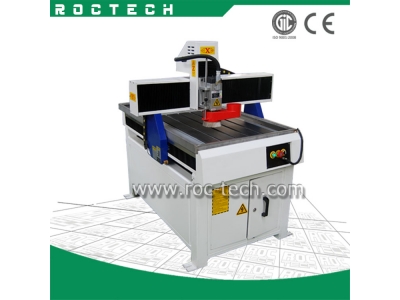

CNC Engraving Machine RC0609
Brief Introduction:
1. This machine is a special order from one of our customers. To process on ice block, we add a water slot on the
table of the machine. The machine is the best choice for small piece materials working, and it is suitable for advertising
working. It is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials. Working
with dust hood on all three axis, it can stop dust away from the rails and ball screws, and to keep the machine working
for longer time.
2. We use accurate HIWINlinear rail for Y axis, with options such as water cooling system or mist cooling system etc.
3. With T-slot table, holding the materials with clamps, you can do variety of high-precision works.
Performance parameter:
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
600x900x100mm |
2 |
Table Size |
720X950mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
0.03/300mm |
4 |
X,Y,Z Repositioning Positioning Accuracy |
0.03mm |
5 |
Table Surface |
T-slot table |
6 |
Frame |
Welded Steel Structure |
7 |
X, Z Structure |
Ball Screw |
8 |
Y Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. power Consumption |
0.8KW |
10 |
Max. Rapid Travel Rate |
9000mm/min |
11 |
Max. Working Speed |
6000mm/min |
12 |
Spindle Power |
2.2kw air cooling spindle |
13 |
Spindle Speed |
0-18000RPM |
14 |
Drive Motors |
Stepper System (option: Servo) |
15 |
Working Voltage |
AC220V/50/60Hz |
16 |
Command Language |
G Code |
17 |
Operating System |
Mach3 System (option: NCstudied, Syntec) |
18 |
Interface |
USB |
19 |
Flash Memory |
128M(U Disk) |
20 |
Collet |
ER20 |
21 |
X,Y Resolution |
<0.03mm |
22 |
Software Compatability |
Type3 software (Option: Wentai software, Artcam software) |
23 |
Packing Size |
1700 x 1600 x 1600mm |
24 |
Net Weight |
220KG |
25 |
Gross Weight |
280KG |
26 |
Running Environment Temperature |
0 – 45 Centigrade |
27 |
Relative Humidity |
30%~75% |
Guarantee & After Sales Service:
1). The machine is guaranteed for 12 months.
2). Technical support by phone, e-mail or MSN around the clock.
3). Friendly English version manual and operation video CD disk.
