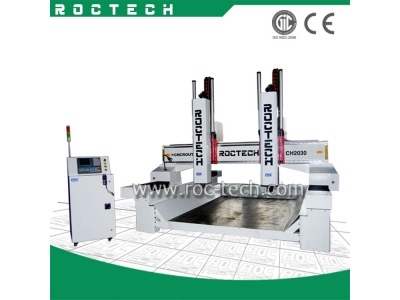

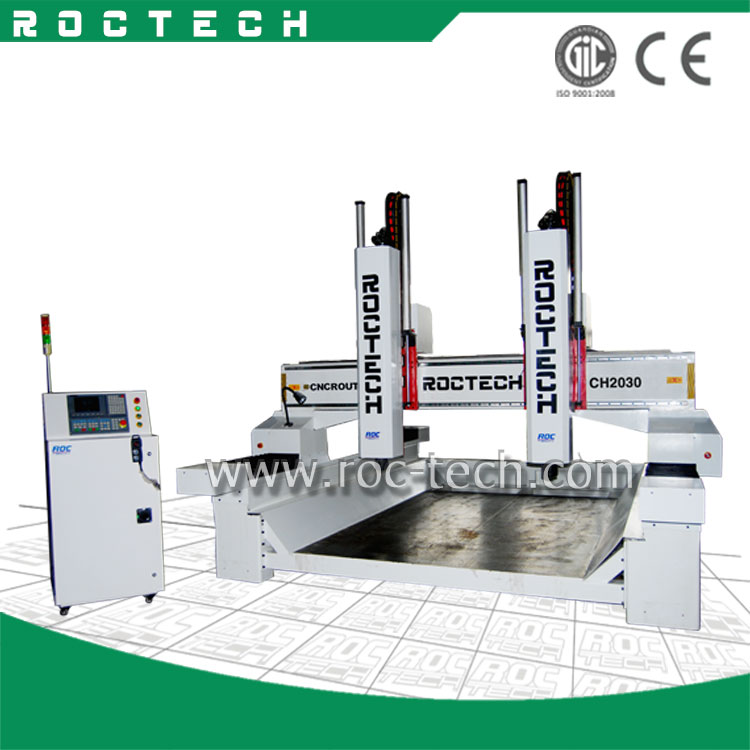

EPS CNC Processing Center RCH2030
1.We use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine.
It can balance the force in all directions to ensure the machine’s accuracy and strength when engraving.
2.The route of Z axis can be heightened to 900mm, so it is suitable for processing large-scale and
super-thick material.
3.The design documents of intelligent processing cross-border protection can prevent the excessive process
caused bymechanical impact.
4.The diversified processing speed can be controlled separately. The speed of idle running and roll setting
improve the quality of processed products and processing efficiency greatly.
Functional characteristics
Adopt Europe OSAI numerical control system, high machining accuracy and high speed.
Application:
Wood, EPS and non-metallic carbon hybrid materials.
Die and mold industries:
Non-metallic mold: the machine is particularly suitable for automotive foam mold, wooden ship model, wooden
model aviation, trains and other wooden mold.
Musical instrument industry:
Can carve three dimension musical instrument, contour cutting;
Performance Parameter:
No. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
2000x3000x900mm |
2 |
Table Size |
2400×3500mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z repositioning Accuracy |
±0.03mm |
5 |
Table Surface |
Milling steel table |
6 |
Frame |
Welded structure (cast iron) |
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without spindle) 8.0Kw |
10 |
Max. Rapid Travel Rate |
40000mm/min |
11 |
Max. Working Speed |
25000mm/min |
12 |
Spindle Power |
12.0KW |
13 |
Spindle Speed |
0-24000RPM |
14 |
Drive Motors |
Yaskawa servo system(Option: Siemens) |
15 |
Working Voltage |
AC380V/50/60Hz,3PH |
16 |
Command Language |
G code |
17 |
Operating System |
Syntec control System (Option: Siemens/Osai) |
18 |
Computer Interface |
Ethernet |
19 |
Flash Memory |
256 M(with CF card) |
20 |
Collet |
ER32 (BT30) |
21 |
X,Y Resolution |
<0.03mm |
22 |
Software Compatibility |
Type3, UcancameV9, Artcam software |
23 |
Running Temperature |
0 - 45 degree |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
2300X4800X1900mm (in parts) |
26 |
N.W. |
7200KG |
27 |
G.W. |
7500KG |
28 |
Guarantee |
One year from the date of commission |
29 |
Optional Parts |
Air cooling spindle or Water cooling spindle |
Dust collector |
||
Rotary system |
||
Mist-cooling system |
||
Panasonic Servo motors/Delta servo motors |
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
