Detailed Product Description

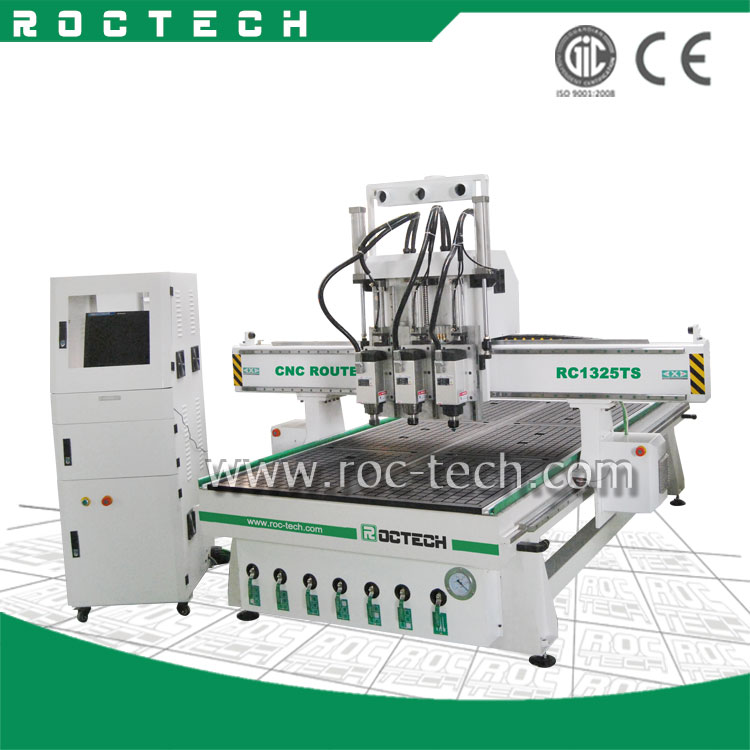

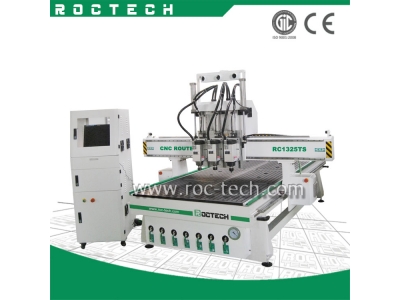

With three auto-changing air coolant spindles, big inverter, this machine is specially designed for
woodworking industrial.
Top Quality Components:
1. Three 4.5Kw air cooling spindles(option: HSD spindle), which can be changed automatically with the
commands from system.
2. Special processed thick steel pipe structure, well welded, high-precision, no distortion for whole
structure and can be used for long life time.
3. SYNTEC controller system with Ethernet interface, working without connecting with computer during working and
easy to control (Ncstudio for option).
4. Software: CAD/CAM designing software such as Original type3, Artcam pro,
5. Auto lubrication system, easy to operate.
6. Separated control system makes it easy to operate.
7. Stepper motors and the option of Yaskawa or Panasonic Servo motors and drivers, and two motors for Y axis.
Performance Parameter:
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300x2500x200mm |
2 |
Table Size |
1340×3640mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.02/300mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.02mm |
5 |
Table Surface |
Vacuum and T-slot Combined(Option: T-slot Table) |
6 |
Frame |
Welded Structure |
7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without Spindle) 4.5Kw |
10 |
Max. Rapid Travel Rate |
30000mm/min |
11 |
Max. Working Speed |
25000mm/min |
12 |
Spindle Power |
4.5kw *3 |
13 |
Spindle Speed |
0-18000RPM |
14 |
Drive Motors |
Stepper System |
15 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V)) |
16 |
Command Language |
G code |
17 |
Operating System |
SYNTEC controller system (options: Ncstudio PC Software) |
18 |
Computer Interface |
USB |
19 |
Flash Memory |
128M(U Disk) |
20 |
Collet |
ER25 |
21 |
X,Y Resolution |
<0.01mm |
22 |
Software Compatibility |
Type3/UcancameV9 Software(Option: Artcam Software) |
23 |
Running Environment Temperature |
0 - 45 Centigrade |
24 |
Relative Humidity |
30% - 75% |
25 |
Packing Size |
3750X2250X2100mm |
26 |
N.W. |
1750KG |
27 |
G.W. |
2190KG |
28 |
Optional Parts |
Air Cooling Spindle or Water Cooling Spindle |
Syntec Control System |
||
Vacuum Pump |
||
Rotary System |
||
Mist-cooling System |
||
850W Yaskawa/800W PanasonicServo Motors |
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
