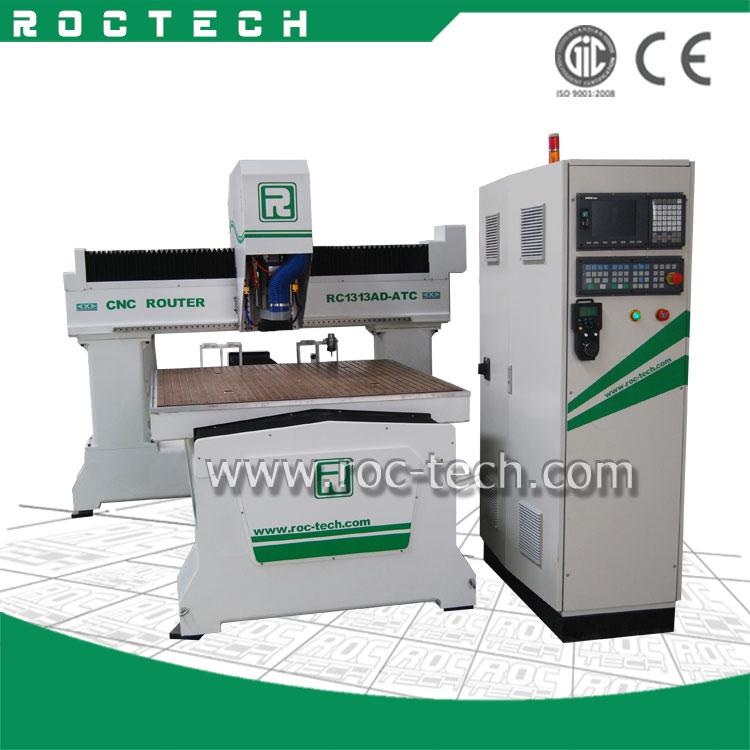

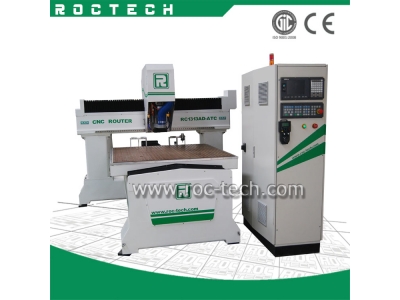

ACRYLIC MINI LETTER CUTTING CNC MACHINE RC1313AD-ATC
Brief introduction:
The machine is the best choice for small piece materials working in advertising industry. It is good at cutting and
engraving on brassaluminum, plastic, acrylic, wood, MDF and other similar materials.
We use top quality components for the machine, such as Hiteco spindle, Yaskawa servo motor, Delta Inverter,
Hiwin linear and so on,to keep the machine in best condition even after working for many years. With phenolic
T-slot and vacuum combined table, not easy to deflect, you can do variety of high-precision works.
Performance Parameter:
No |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300x1300x200mm |
2 |
Table Size |
1400X1400mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
0.03/300mm |
4 |
X,Y,Z Repositioning Positioning Accuracy |
0.03mm |
5 |
Table Surface |
T-slot table & Vacuum Combined |
6 |
Frame |
Welded Steel Structure |
7 |
X, Y ,Z Structure |
Hiwin Rail Linear and Ball Screw |
8 |
Max. power Consumption |
(Without Spindle) 4.2Kw |
9 |
Max. Rapid Travel Rate |
33000mm/min |
10 |
Max. Working Speed |
25000mm/min |
11 |
Spindle Power |
9kw Hiteco air cooling spindle |
12 |
Spindle Speed |
0-24000RPM |
13 |
Drive Motors |
Yaskawa Servo Motors |
14 |
Working Voltage |
AC380V/50/60Hz |
15 |
Command Language |
G Code |
16 |
Operating System |
Syntec System |
17 |
Collet |
ER32 |
18 |
X,Y Resolution |
<0.03mm |
19 |
Software compatibility |
Type3, Artcam, Ucancam |
20 |
Packing Size |
2100 x 2100 x 2000mm |
21 |
Net Weight |
2800KG |
22 |
Gross Weight |
3000KG |
23 |
Running Environment Temperature |
0 – 45 Centigrade |
24 |
Relative Humidity |
30%~75% |
Guarantee & After Sales Service:
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
