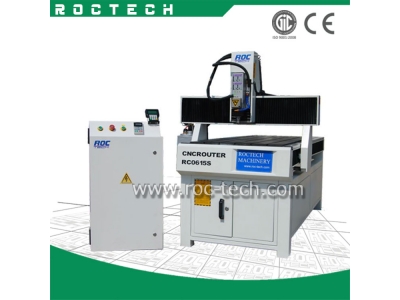

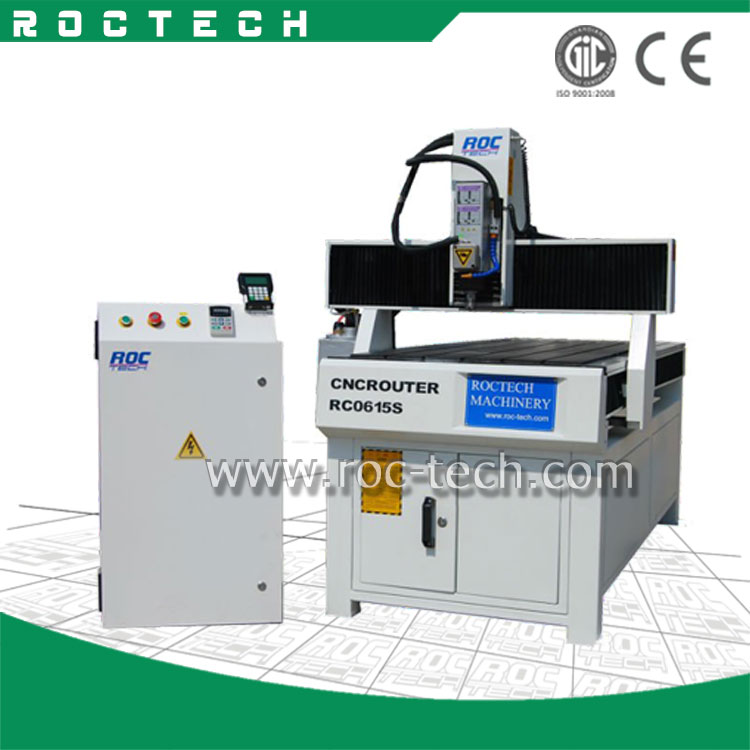

Features:
1.The machine is the best choice for small piece materials working, and it is suitable for advertising working.
It is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials.
2.Working with dust hood on all three axis, it can stop dust away from the rails and ball screws, and to keep
the machine working for longer time.
3.We use accurate LM linear (HIWIN) for Y axis, with options such as water cooling system or mist cooling system etc.
4.With T-slot table, holding the materials with clamps, you can do variety of high-precision works.
Performance Parameter:
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
600x1500x120mm |
2 |
Table Size |
720X1850mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
0.01/300mm |
4 |
X,Y,Z repositioning Positioning Accuracy |
0.01mm |
5 |
Table Surface |
T-slot Extrusions |
6 |
Frame |
Welded steel structure |
7 |
X, Z Structure |
Ball Screw |
8 |
Y Structure |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. power Consumption |
0.8Kw |
10 |
Max.Rapid Travel Rate |
9000mm/min |
11 |
Max.Working Speed |
6000mm/min |
12 |
Spindle Power |
1.5 water cooling spindle (option: 1.5kw HSD air spindle) |
13 |
Spindle Speed |
0-18000RPM |
14 |
Drive Motors |
Servo Motor |
15 |
Working Voltage |
AC220V/50/60Hz |
16 |
Command Language |
G code |
17 |
Operating System |
DSP System (Mach3 PC Software) |
18 |
Interface |
USB |
19 |
Flash Memory |
128M(U Disk) |
20 |
Collet |
ER25 |
21 |
X,Y Resolution |
<0.01mm |
22 |
Software Compatability |
Type3 software (Option: Wentai software, Artcam software) |
23 |
Packing Size |
2150 x 1250 x 1585mm |
24 |
Net Weight |
240KG |
25 |
Gross Weight |
300KG |
26 |
Running Environment Temperature |
0-45 Degree |
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
