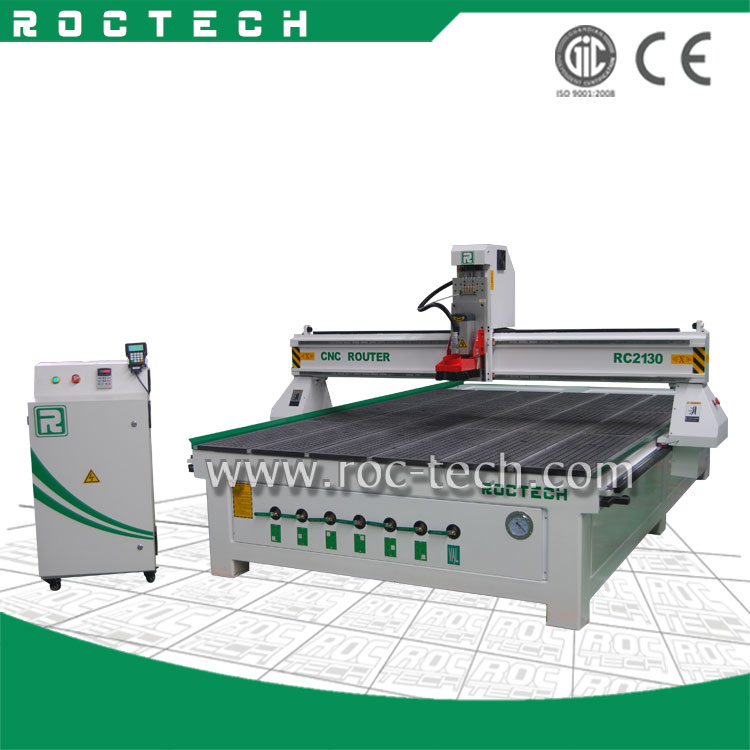

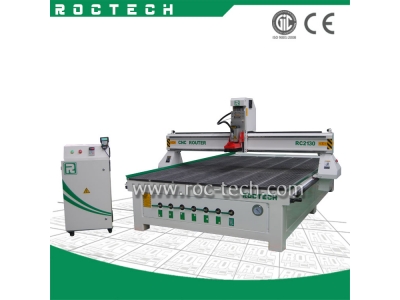

CNC Router RC2030H
Features:
1. With hard steel structure, is fit for hard wood working, like cutting and engraving on Rosewood for furniture, indoor
decoration. And with the Vacuum holding way and dust collector, the machine is qualified for mass- producing of
furniture.
2. We use top quality components for the machines, like HSD spindle, Delta Inverter, Becker Vacuum pump, Hiwin linear
and so on, to keep the machine in the best condition even after many years working.
We use the best quality parts for the CNC routers:
1. The machines’ body is strong, rigid, high precision, reliable and durable.
2. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
3. Using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure
the long time working.
4. High-performance driven motor to ensure that the machines high speed and accuracy
5. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred
6. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to
ensure that accidental processing
7. Compatibility, compatible Type3/ Artcam/ Castmate/Wentai, and so on a variety of CAD/CAM design software.
Performance Parameter:
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area: |
2100x3000x400mm |
2 |
Table Size: |
21300×3500mm |
3 |
X,Y,Z Traveling Positioning Accuracy: |
±0.03/300mm |
4 |
X,Y,Z repositioning Accuracy: |
±0.03mm |
5 |
Table Surface: |
Vacuum and T-slot combined(Option: T-slot table) |
6 |
Frame: |
Welded structure |
7 |
X, Y Structure: |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure: |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption: |
(Without spindle) 2.0Kw |
10 |
Max. Rapid Travel Rate: |
33000mm/min |
11 |
Max. Working Speed: |
25000mm/min |
12 |
Spindle Power: |
3.0/4.5/6/7KW |
13 |
Spindle Speed: |
0-18000RPM |
14 |
Drive Motors: |
Stepper system |
15 |
Working Voltage: |
AC380V/50/60Hz,3PH (Option: 220V)) |
16 |
Command Language: |
G code |
17 |
Operating System: |
DSP System(options: Ncstudio/Mach3 PC Software) |
18 |
Computer Interface: |
USB |
19 |
Flash Memory: |
128M(U Disk) |
20 |
Collet: |
ER25 |
21 |
X,Y Resolution |
<0.01mm |
22 |
Software Compatibility: |
Type3/UcancameV9 software,(Option: Artcam software) |
23 |
Running Environment Temperature: |
0degree - 45 degree |
24 |
Relative Humidity: |
30% - 75% |
25 |
Packing Size: |
3700X2250X1970mm |
26 |
N.W.: |
1560KG |
27 |
G.W.: |
1800KG |
28 |
Guarantee |
One year from the date of commission |
29 |
Optional Parts |
Air cooling spindle or Water cooling spindle |
Syntech control system |
||
Dust collector |
||
Vacuum Pump |
||
Rotary system |
||
Mist-cooling system |
||
850W Yaskawa/800W PanasonicServo motors |
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
