China LASER FLAT BED RC1325L Manufacturers ,LASER FLAT BED RC1325L Suppliers Directory - Find a LASER FLAT BED RC1325L Manufacturer and Supplier. Choose Quality LASER FLAT BED RC1325L Manufacturers, Suppliers, Exporters at ROCTECH CNC router.

Position:Home > CNC Routers > Laser Cutting Machine
Laser Cutting Machine

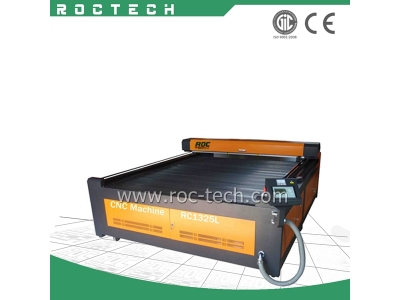

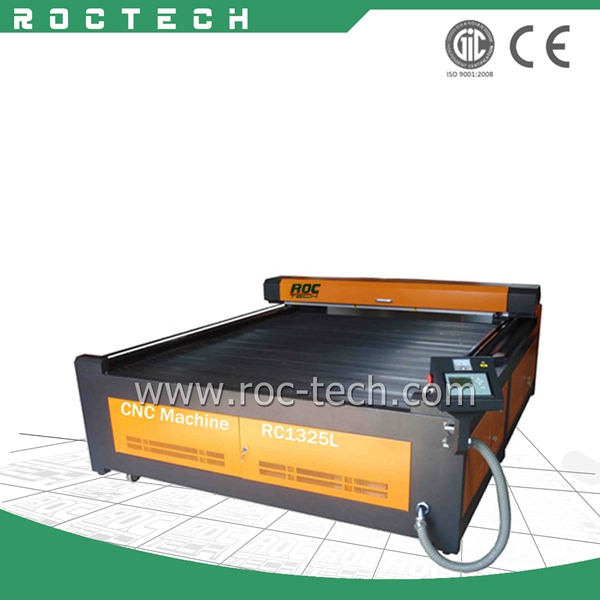

LASER FLAT BED RC1325L

LASER FLAT BED RC1325L
  • No.:10202473933
  • Brand :ROCTECH
  • Weight:1000KG

LASER FLAT BED RC1325L,Detailed

Features:

1.Laser flat bed RC1325L is used specially for the nonmetal art crafts, gifts and the engraving of bamboo products.

The mechanical structure is strong and stable, making the machine to run at high precision. The electrical ability is

stable, the engraving speed is high, and the precision is high.



2.The machine can engrave beautiful pictures, peoples’ photos on the surface of many materials of different size of

materials (marble, black or colored acrylic etc). It can also engrave many signs, marks. It is a machine with high cost

performance.

Applicable materials:

Non-metal materials such as acrylic, double color board, Plexiglas, common glass, bamboo and wood, rubber,

marble, granite and tiles, leather cloth etc.



Applicable industries:

Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment

and leather, embroidery, decoration and upholster industry.



Characteristics:

1) Japanese technical engine running, making sure the products to run at high aped and high precision.

2) The original binding beeline lead rail, the mechanic is running well and stable.

3) Channel feeding, the feeding can be unlimited.

4) The body of the machine adopts high quality aluminum, professional model and has the specification of strong and

 not easy for distortion.

5) The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS chip adopts double

face CPU.

Performance Parameter:

Name

Laser cutting machine RC1325L

Processing area

1300mm*2500mm

Laser power

100W,130W,150W,180W

Laser type:

Co2 glass laser tube

Software:

Laser cut 5.3

Dimension:

2.85m*2m*1.3m

Engraving speed

1-6000mm/min

Cutting speed

1-1000mm/min

Cutting thickness

0-25mm acrylic (others determined by materials)

Resolution ratio

≤0.0125mm

Position system:

Red dot

Interface:

USB

Minimum shaping character

letter 0.5mm, Chinese 0.5mm

Support graphic format

DST, PLT, BMP, DXF

Gross power

1000W

Driving mode:

DC0.8A 24V stepper motor

Cooling mode:

Circulation water cooling

Working voltage:

AC220V/50HZ or 110V/60HZ or depend on customer

Operating temperature

0-45C

Operating humidity:

5-95%

Packing:

wooden box

Guarantee time:

1 year, laser tube 3 months

Option:

Rotary attachment for column materials

Operation:

Video to tell customer how to operate the machine

Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.



Laser cutting machine is special for the large format cutting, like cutting on cloths, leather, textile, etc. The feature of cutting is smooth, fine, with nesting function can reduce cost and save materials. Constant power design of laser path, to ensure cutting on large format on each working spot are keeping the same power-force. Customized special machines are acceptable.
