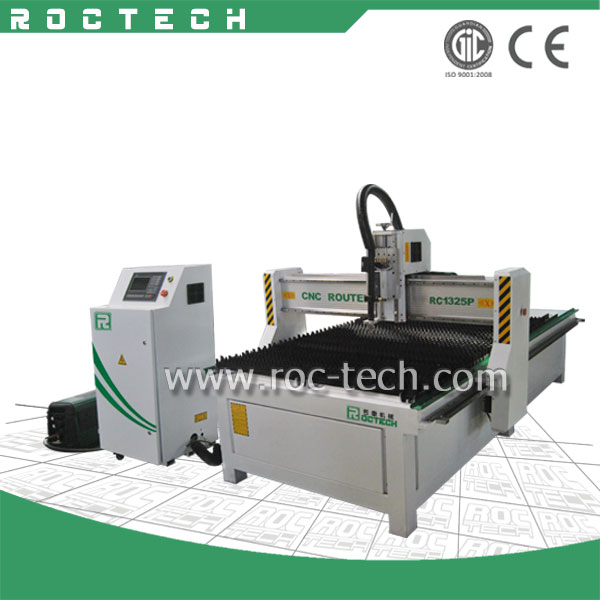

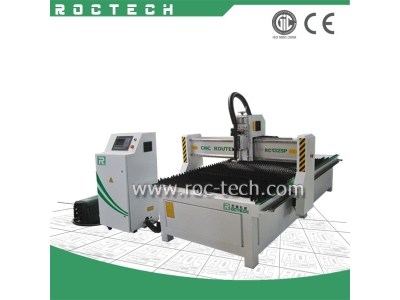

CNC PLASMA RC1325P METALCUTTING MACHINE

CNC PLASMA RC1325P METALCUTTING MACHINE
  • No.:10202473920
  • Brand :ROCTECH
  • Weight:800KGS

CNC PLASMA RC1325P METALCUTTING MACHINE,Detailed

Features:

1.This machine is with hard steel structure, American Cut-Mast power, Start control system is good for

cutting metal with 3-16mm thickness.

2.We use top quality components for the machine, such as Taiwan Hiwin linear rail and TBI ball screw,to

keep the machine in best condition even after working for many years.

 Performance parameter:



No.

Description

Parameter

1

X,Y Working Area

1300x2500mm

2

Cutting thickness

(40A)0.5-10mm;(120A)3-16mm;*(200A)3-25mm

3

X,Y Traveling Positioning Accuracy

±0.03/300mm

4

Cutting Speed

0-8000mm/min

5

Plasma Generator

American Cut-Mast

6

Frame

 Welded Structure

7

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

Working Form

Untouched Arc Striking

9

Working Voltage

380V 3PH

10

Control system

Start control system

11

Software

Type3

12

Document Transmission Form

USB Interface

13

Drive Motors

Stepper motor

14

G.W.

800KGS

15

Packing Size

1500*3000*160mm

Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
