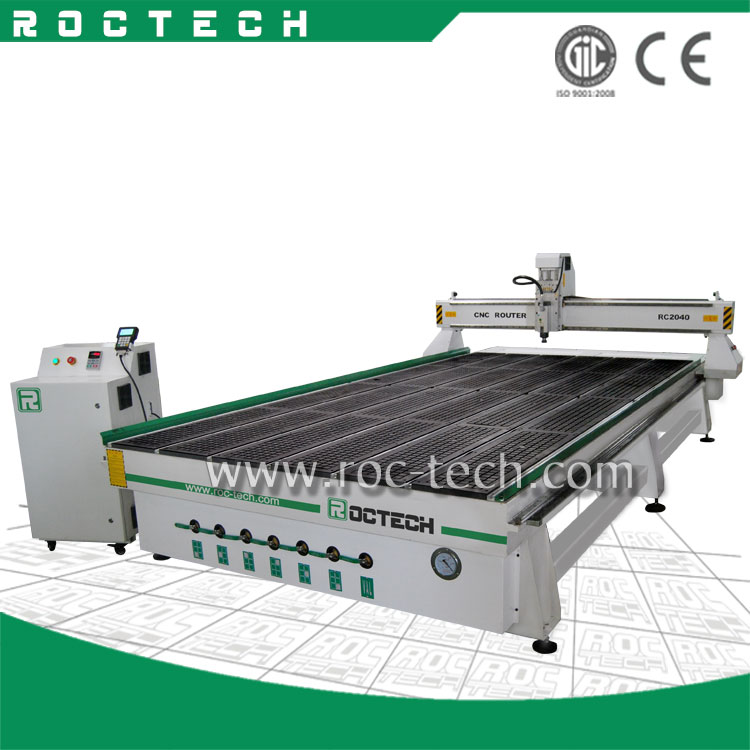

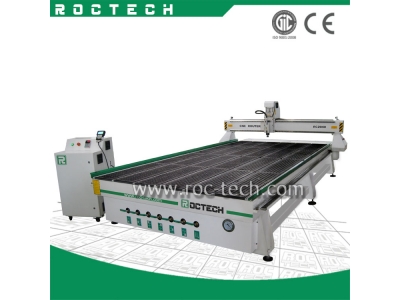

Model:RC2040,Standard:2000*4000*200mm,
CNC Carving Machine RC 2040 is fit for hard wood working, Big size and mass producing, like cutting and engraving
on Rosewood for furniture, indoor decoration. And with the Vacuum holding way and dust collector, the machine is
qualified for mass-producing of furniture.
Performance Parameter:
No. |
Description |
Parameter |
1 |
X,Y,Z Working Area: |
2000x4000x200mm |
2 |
Table Size: |
2100×4400mm |
3 |
X,Y,Z Traveling Positioning Accuracy: |
±0.01/300mm |
4 |
X,Y,Z repositioning Accuracy: |
±0.01mm |
5 |
Table Surface: |
Vacuum and T-slot combined (Option: T-slot table) |
6 |
Frame: |
Welded structure |
7 |
X, Y Structure: |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure: |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption: |
(Without spindle) 4.5Kw |
10 |
Max. Rapid Travel Rate: |
40000mm/min |
11 |
Max. Working Speed: |
25000mm/min |
12 |
Spindle Power: |
3.0/4.5/6/7KW |
13 |
Spindle Speed: |
0-18000RPM |
14 |
Drive Motors: |
Yaskawa servo system |
15 |
Working Voltage: |
AC380V/50/60Hz,3PH (Option: 220V)) |
16 |
Command Language: |
G code |
17 |
Operating System: |
Syntech control System(options: DSP/Ncstudio/Mach3 PC Software) |
18 |
Computer Interface: |
Ethernet |
19 |
Flash Memory: |
256M(with CF card) |
20 |
Collet: |
ER25 |
21 |
X,Y Resolution |
<0.01mm |
22 |
Software Compatibility: |
Type3/UcancameV9 software, (Option: Artcam software) |
23 |
Running Environment Temperature: |
0degree - 45 degree |
24 |
Relative Humidity: |
30% - 75% |
25 |
Packing Size: |
2300X4800X1900mm |
26 |
N.W.: |
2160KG |
27 |
G.W.: |
2650KG |
28 |
Guarantee |
One year from the date of commission |
29 |
Optional Parts |
Air cooling spindle or Water cooling spindle |
Dust collector |
||
Rotary system |
||
Mist-cooling system |
||
Panasonic Servo motors/Delta servo motors |
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
