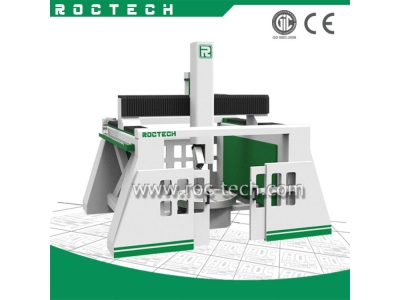

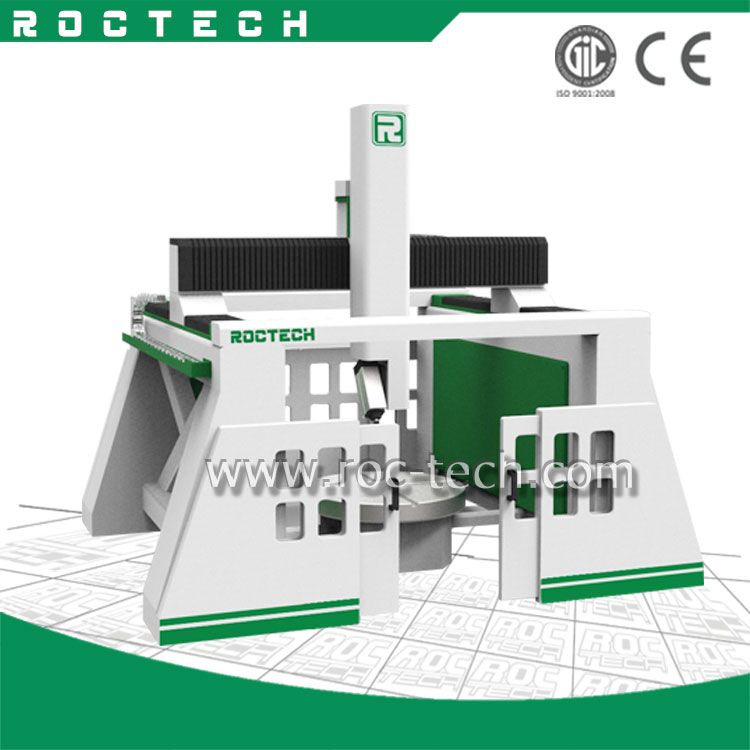

1. Brief introduction
With OSAI numerical control system, the machine is of high speed and high machining accuracy. The Hiwin linear rails
and the Germany original rotating arm ensure the accuracy and strength of the machine.
Z-axis travel can be heightened to 1.2 meters. The spindle can rotate +/-90 degree along Y axis, and the round
table can rotate 360 degree,very suitable for stone sculpture and wood statue and other model works.
2. Top Quality Components:
1.) The machine’s body is strong, high-precision, reliable and durable.
2.) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3.) Well-known Italian HSD water cooling spindle, strong cutting ability, low noise, professinal for stone processing,
to ensure the machine working for long time.
4.) High-performance Japanese Yaskawa servo driven motor to ensure the machine’s high speed and accuracy.
5.) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions
in case of the accidental power outages
6.) Perfect design, top quality accessories, to minimize the machine’s failure rate.
7.) The intelligent processing cross-border protection function can prevent the excessive processing caused by
mechanical collision.
8.)Diversified control processing speed can control the working speed, traveling speed and dropping tool speed, and it
improves the quality and efficiency greatly.
3. Performance parameter
NO. |
Description |
parameter |
1 |
X Y Z Axis working area |
1200*1200*1200mm |
2 |
Table size |
1200mm diameter |
3 |
Positioning accuracy |
±0.03/300mm |
4 |
Reposition positioning accuracy |
±0.03/300mm |
5 |
Frame |
Heavy steel |
6 |
Drive system X,Y axis |
Rack and pinion |
7 |
Drive system Z axis |
Ball screw |
8 |
Max power consumption |
15.0KW |
9 |
Max velocity |
25000mm/min |
10 |
Max working speed |
15000mm/min |
11 |
Spindle power |
7.5kw HSD spindle |
11 |
Spindle speed |
0-24000rmp |
12 |
Drive motor |
Yaskawa servo |
13 |
Working voltage |
AC380V |
14 |
Command language |
G code |
15 |
Interface |
Ethernet |
16 |
Operating system |
Italian Osai |
17 |
Flash memory |
PC control |
19 |
X-Y resolution |
0.03/300mm |
20 |
Software |
Alpha Cam,Becam,Type3, UcancamV9 |
21 |
Running |
Temperature:0 -45 centigrade |
22 |
Packing size |
3200*3000*2200mm (in parts) |
23 |
Net weight |
8T |
24 |
Gross weight |
9T |
4. Guarantee & After Sales Service
1). The machine is guaranteed for 12 months.
2). Technical support by phone, e-mail or MSN around the clock.
3). Friendly English version manual and operation video CD disk.
