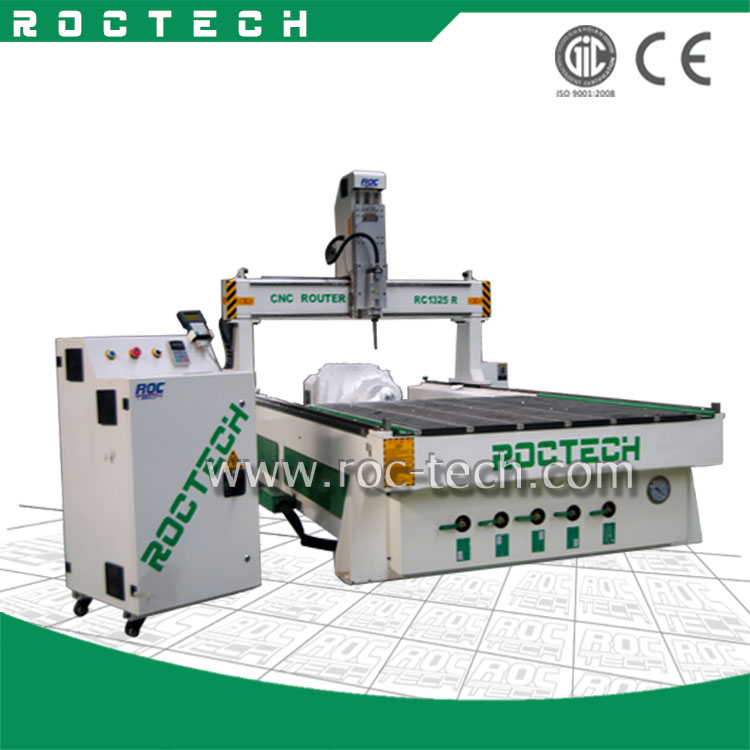

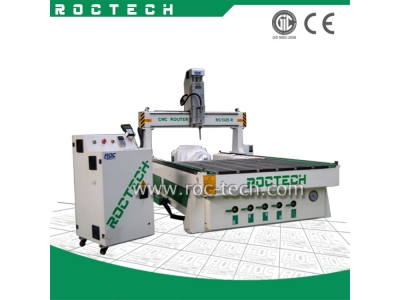

Features:
1.9.0KW HSD ATC spindle, Change tools automatically. With Carrousel tool magazine
2.Thick steel pipe stucture afer special treatment,well welded, no distortion for whole structure high precision ,
and long life time.
3. SYNTEC controller system with Ethernet interface,working without connecting with computer during working and
easy to control.
4.Software:CAD/CAM designing software such as Original type3, Artcam,
5.Auto lubrication system ,easy to operate by pressing one key.
6.Separated control system makes operation easily.
7.Adopt high speed YASKAWA SERVO motor and drivers,and two motors for Y axis. Max speed is 60000mm/min.
Performance parameter:
NO. |
Description |
parameter |
1 |
XYZ working area |
1300*2500*250mm |
2 |
Table size |
1330*3640mm |
3 |
XYZ travel positioning accuracy |
±0.02mm |
4 |
XYZ repositioning positioning accury |
±0.02mm |
5 |
Table surface |
Vacuum and T-slot combined table |
6 |
Frame |
Steel tube structure |
7 |
Drive system X-Y axis |
Rack and pinion |
8 |
Drive system Z axis |
Ball screw |
9 |
Max power consumption |
4.5KW(without spindle) |
10 |
Max velocity |
40000mm/min |
11 |
Max working speed |
25000mm/min |
12 |
Spindle speed |
0-24000rmp |
13 |
work mode |
Yaskawa Servo( Option:Siemens servo motor) |
14 |
Working voltage |
AC380V 3PH (Option:220V) |
15 |
Command language |
G code |
16 |
Interface |
USB |
17 |
Operating system |
Syntec control system (Option:Siemens) |
18 |
Flash memory |
256M |
19 |
X-Y resolution |
0.02mm |
20 |
Software |
Type3,Artcame,UG,power mill |
21 |
Running Temperature |
0-45 degree |
22 |
Paking size |
3750*2250*2100mm |
23 |
Net weight |
1550KG |
24 |
Gross weight |
1790KG |
Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
