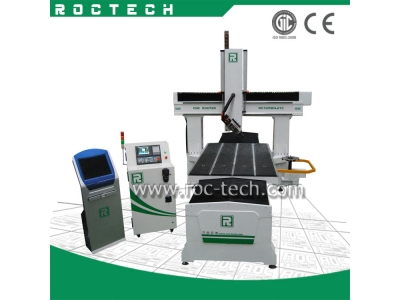

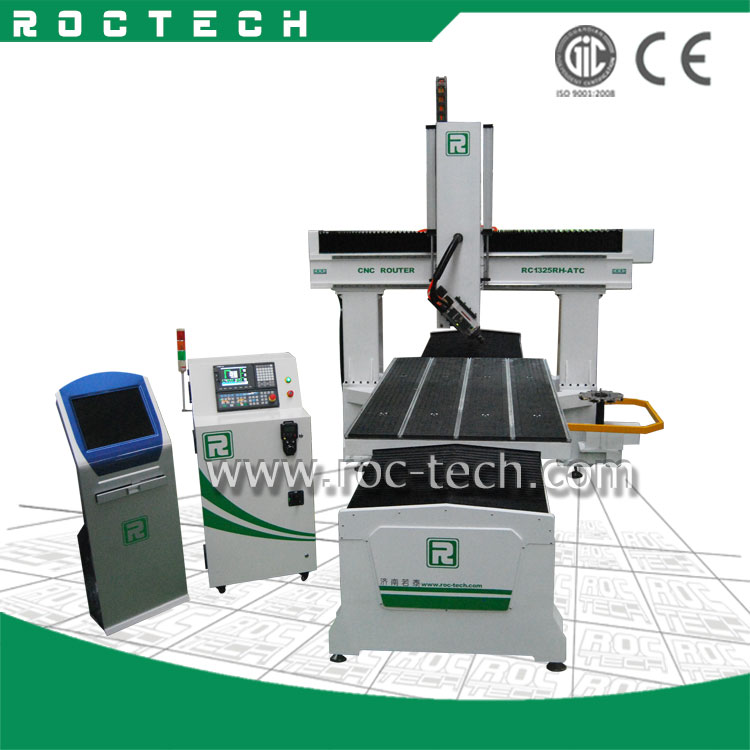

1.Machine Introduction
This machine is specially for 4D engraving, the spindle(B axis) can rotate +/- 90 degree, can make multi-kinds
of surfacewhich we can design with Software
With Syntec control system, Yaskawa servo motors, HSD air cooling spindle, Delta inverter ,Becker vacuum
pump all components are from global leaders.
With this machine, you can make different surface carving, arc-surface milling, bend surface machining for
4D jobs,like special shaped arts, bended doors or cabinets.
With hard steel structure, it can work on MDF, Acrylic, wood, and some soft metal, cutting and engraving
on Rosewood for furniture, indoor decoration.
2.Perfomance Parameters
No. |
Description |
Parameter |
1 |
X,Y,Z Working Area: |
1300x2500x400mm*180degree |
2 |
Table Size: |
1530×2940mm |
3 |
X,Y,Z Traveling Positioning Accuracy: |
±0.03/300mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.03/300mm |
5 |
Table Surface: |
Vacuum and T-slot combined |
6 |
Frame: |
Big Steel tube structure |
7 |
X, Y Structure: |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
8 |
Z Structure: |
Hiwin Rail Linear Bearings and Ball Screw |
9 |
Max. Power Consumption |
(Without spindle) 4.5Kw |
10 |
Max. Rapid Travel Rate |
30000mm/min |
11 |
Max. Working Speed |
20000mm/min |
12 |
Spindle Power: |
3.0/4.5/6/7KW |
13 |
Spindle Speed: |
0-18000RPM |
14 |
Drive Motors: |
Yaskawa servo motors |
15 |
Working Voltage: |
AC380V/50/60Hz,3PH (Option: 220V)) |
16 |
Command Language: |
G code |
17 |
Operating System: |
Syntec control system |
18 |
Computer Interface: |
Ethernet |
19 |
Flash Memory: |
256M |
20 |
Collet: |
ER25 |
21 |
X,Y Resolution |
0.03/300mm |
22 |
Software Compatibility: |
Type3 software, (Option: Artcam software) |
23 |
Running Environment Temperature: |
0degree - 45 degree |
24 |
Relative Humidity: |
30% - 75% |
25 |
Packing Size: |
3300X2200X2200mm |
26 |
N.W.: |
1650KG |
27 |
G.W.: |
2000KG |
28 |
Guarantee |
One year from the date of commission |
29 |
Optional Parts |
Dust collector/ Dust hoods for three axis |
Vacuum Pump |
||
Rotary system |
||
Mist-cooling system |
||
Yaskawa/ Panasonic Servo motors |
3.Guarantee & After Sales Service
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
